Fajar Nickel Alloys, based in Jakarta, Indonesia, stands out as a trusted manufacturer and supplier of top-notch Waspaloy Sheets and Plates, designed for extreme temperatures and high-stress environments. Waspaloy, a nickel-based superalloy, is celebrated for its remarkable mechanical strength, resistance to oxidation, and thermal stability, even at temperatures soaring up to 980°C (1,800°F). Fajar Nickel Alloys provides Waspaloy flat products that adhere to international standards like AMS 5544 and ASTM B637, ensuring precision and durability for critical components. With cutting-edge production capabilities and rigorous quality control, Fajar Nickel Alloys guarantees that its Waspaloy sheets and plates are perfect for aerospace, turbine, nuclear, and high-performance industrial applications.
Waspaloy is a precipitation-hardening nickel-based superalloy made up of about 58% nickel, 19% chromium, 13% cobalt, 4.3% molybdenum, 3% titanium, and 1.4% aluminum. These elements work together to provide outstanding oxidation resistance and creep strength at temperatures between 870 and 980°C. Its mechanical properties boast tensile strength reaching up to 1,000 MPa, yield strength around 700 MPa, and impressive fatigue resistance. Waspaloy sheets and plates are perfect for forming and machining in controlled conditions, ensuring reliable long-term performance in environments where thermal and mechanical stresses are both intense and continuous.
| Specification : | AMS, AMS, API |

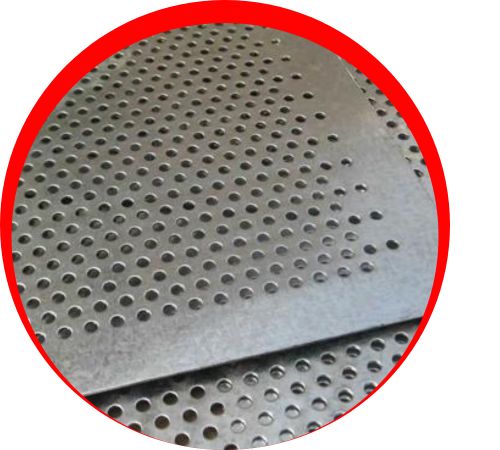

| Specialize sheets : | Shim, Perforated Sheet, B. Q. Profile. |
| Size : | 0.5 MM TO 200 MM THICK IN 1000 MM TO 2500 MM WIDTH & 2500 MM TO 12500 MM LENGTH |
| Finish : | Cold rolled sheet (CR), 2D, Hot rolled plate (HR), 2B, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness : | Quarter Hard, Soft, Hard, Half Hard, Spring Hard etc. |
| Grade : | Waspaloy (UNS-N07001) |
| STANDARD | UNS | Material No |
| Waspaloy | N07001 | 2.4654 |
| Waspaloy | Cr | Ni | Mo | Co | Al | Ti | B | C | Zr | Fe | Mn | Si | P | S | Cu |
| MIN | 18.00 | — | 3.50 | 12.00 | 1.20 | 2.75 | 0.003 | 0.02 | 0.02 | — | — | — | — | — | — |
| MAX | 21.00 | Balance | 5.00 | 15.00 | 1.60 | 3.25 | 0.01 | 0.10 | 0.08 | 2.00 | 0.10 | 0.15 | 0.015 | 0.015 | 0.10 |
| Temperature, °F | Ultimate Tensile Strength, ksi | 0.2% Yield Strength, ksi | Elongation, % | Hardness, Rockwell C |
| 70 | 193 | 132 | 27 | 34-40 |
| 1200 | 173 | 112 | 21 | – |
| 1400 | 140 | 112 | 12 | – |
| 1600 | 79 | 60 | 12 | – |
At Fajar Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Waspalloy Sheets & Plates in Jakarta, Indonesia, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Indonesia, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Fajar Nickel Alloys’ Waspaloy Sheets and Plates find extensive use in the aerospace and gas turbine sectors for components like combustion chambers, exhaust systems, turbine blades, and afterburner parts, where extreme heat and mechanical stress are the norm. In the nuclear energy field, they serve as high-temperature structural supports and reactor hardware. Chemical processing plants also rely on Waspaloy plates for heat exchangers and vessels that handle corrosive materials. Thanks to its high-temperature oxidation resistance, Waspaloy is a go-to choice for demanding applications.
