Fajar Nickel Alloys stands out as a leading manufacturer and supplier of Titanium Grade 5 Sheets and Plates, proudly based in Jakarta, Indonesia. With a strong commitment to quality and precision, we provide high-performance titanium products that adhere to international standards. Our Titanium Grade 5 Sheets and Plates are highly regarded for their remarkable strength, corrosion resistance, and lightweight characteristics. Tailored for critical sectors like aerospace, medical, and marine, we leverage advanced technology and rigorous quality control to guarantee top-notch product performance. At Fajar Nickel Alloys, we prioritize timely delivery and exceptional customer service, both in Indonesia and across global markets.
Titanium Grade 5 Sheets and Plates, often referred to as Ti-6Al-4V, are composed of about 90% titanium, 6% aluminum, and 4% vanadium. This alpha-beta alloy boasts impressive mechanical properties, featuring a tensile strength ranging from 900 to 1100 MPa, along with good fatigue and creep resistance. It retains its structural integrity at temperatures up to 400°C and exhibits outstanding corrosion resistance in various environments. Titanium Grade 5 is not only lightweight but also incredibly strong, making it perfect for demanding applications. Its excellent weldability, machinability, and biocompatibility further enhance its performance across high-tech and industrial sectors.
| Specifications | : | ASTM / ASME SB265 |
| Size | : | 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm |
| Thickness | : | 0.1mm to 12 mm Thk |
| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange) |

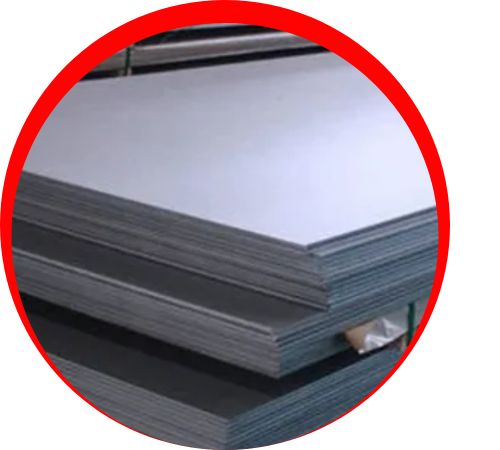

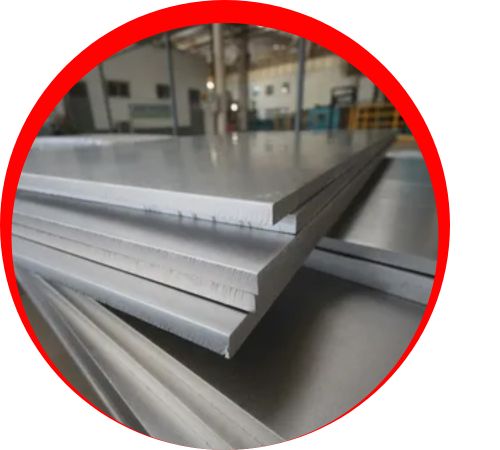

| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness | : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
Contact us to get a quick quote for your requirement.
Industries that require a blend of strength, lightness, and corrosion resistance widely utilize Titanium Grade 5 Sheets and Plates. In aerospace, they find applications in airframes, engine components, and landing gear. The medical sector employs them for surgical instruments and implants, thanks to their biocompatibility. In marine settings, they are ideal for shipbuilding and offshore structures. Additionally, Titanium Grade 5 is used in automotive racing parts, power generation, chemical processing, and high-performance sporting equipment. Its ability to endure extreme conditions makes it indispensable for critical applications where reliability and performance are paramount.
