Fajar Nickel Alloys, Jakarta, Indonesia-based prominent maker and distributor of superior quality Tantalum Sheets for demanding industrial processes. Praised for their high purity, chemical resistance, and resistance to corrosion, our tantalum sheets are crafted to withstand severe chemical and thermal exposure. Relied upon by industries such as electronics, aviation, chemical processing, and medical technology, our solutions deliver outstanding reliability and accuracy performance. At Fajar Nickel Alloys, we uphold international standards, offering clients customized solutions that satisfy the most demanding engineering requirements. Select us as your business partner for high-performance tantalum solutions with uncompromised quality and consistency.
Tantalum Sheets are produced from high-purity tantalum (≥99.9%), providing excellent resistance to aggressive chemicals like hydrochloric, nitric, and sulfuric acids. They retain structural integrity at temperatures above 2,000°C, with superior thermal and electrical conductivity. Mechanical properties comprise high tensile strength, better ductility, and excellent formability, which enable them to be used for precision machining. The chemical inertness and biocompatibility of the material further advance its application in sensitive processes. Whether subjected to extreme temperatures or highly corrosive environments, Tantalum Sheets provide reliable and consistent performance.
| Standard Specifications | ASTM B708, ASME SB708 / ASTM F 560 |
| Thickness | 0.5 mm – 30 mm |
| Width | 10mm – 2500mm |
| Length | As Your Required |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |

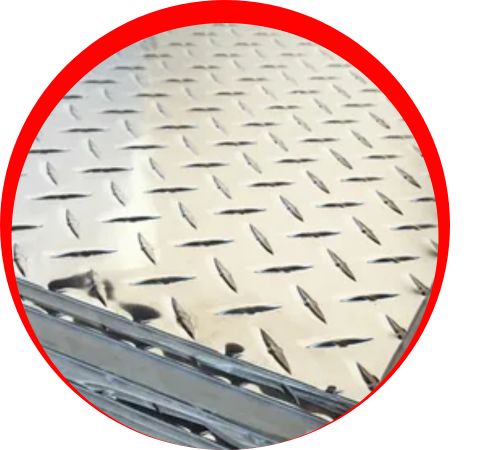

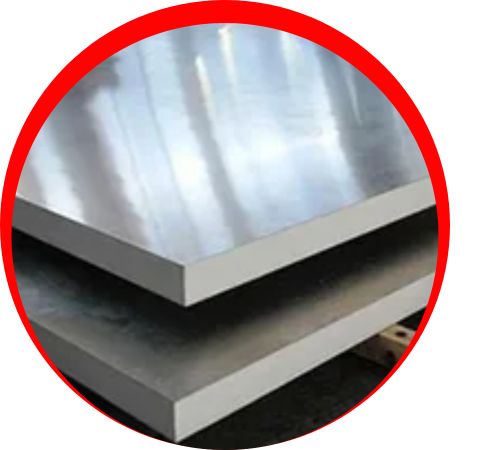

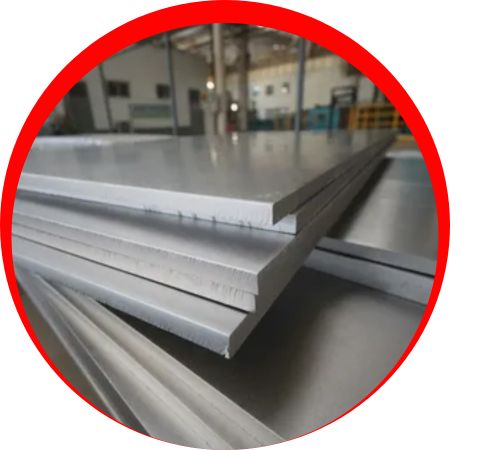

| Types | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Purity | ≥99.9% or 99.95% |
| Grade | R05200, R05400, R05255, R05252, R05240 |
| C | O | N | H | Fe | Mo | Nb | Ni | Si | Ti | W | Ta |
| 0.010 | 0.015 | 0.010 | 0.0015 | 0.010 | 0.020 | 0.100 | 0.010 | 0.005 | 0.010 | 9.0 – 11.0 | Remainder |
| Dimension | Ultimate Tensile Strength, min, psi (MPa) | Yield Strength, min, psi (MPa) (2 % Offset) | Elongation, min, % |
| < 0.125″ (3.175mm) | 70000 (482) | 60000 (414) | 15 |
| ≥0.125″ (3.175mm) | 70000 (482) | 55000 (379) | 20 |
At Fajar Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Tantalum Sheets and Plates in Jakarta, Indonesia, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Indonesia, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Tantalum Sheets find their place in industries requiring high purity, chemical stability, and thermal resistance. They are employed in the electronics industry to produce capacitors, resistors, and other electrical components in which conductivity and reliability are essential. In chemical processing, they coat reactors, tanks, and heat exchangers because they can withstand corrosive acids. The aerospace industry makes use of tantalum sheets for components subjected to intense heat and pressure. Moreover, in the medical industry, their biocompatibility renders them suitable for use in implants, surgical instruments, and orthopedic devices. Their toughness and flexibility make them incredibly popular for high-performance, critical systems.
