Fajar Metals stands out as a top-notch manufacturer and supplier of high-quality Permalloy Foil, proudly based in Jakarta, Indonesia. Renowned for its remarkable soft magnetic properties, Permalloy Foil is the go-to choice for applications that need high magnetic permeability and minimal energy loss. At Fajar Metals, we employ precision rolling and controlled annealing techniques to create thin foils that boast uniform thickness and outstanding material consistency. Our Permalloy Foils find their place in sensitive electronic, telecommunication, and electromagnetic applications. With a strong commitment to quality, innovation, and customer satisfaction, Fajar Metals ensures that our products meet rigorous international standards for performance and reliability in advanced industries.
Permalloy Foil from Fajar Metals is generally made up of around 80% Nickel and 20% Iron, providing incredibly high magnetic permeability and very low coercivity. This soft magnetic alloy excels in electromagnetic shielding and shows minimal core losses in alternating current (AC) magnetic fields. It has a tensile strength ranging from 400 to 600 MPa and is easily formable thanks to its ductility. Our foils are crafted in ultra-thin gauges, down to microns, with precise dimensional tolerances. After careful annealing, they achieve a uniform grain structure, boosting both magnetic and mechanical performance for precision electronic applications.
| Standard Specification : | |
| Dimensions : | – |
| Sheets Thickness : | Range from .008″ to .0125″ |
| Plates Thickness : | Ranges from .0125″ to 5.00″ |
| Sheets/Plates Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets/Plates Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Value Added Service : | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo | Fe |
| 1J50 | 0.010 | 0.17 | 0.35 | 0.006 | 0.005 | 49.80 | 0.02 | —— | Bal |

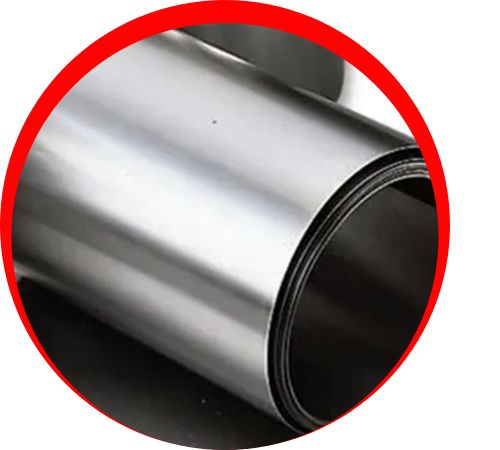

| 1J79 | 0.010 | 0.38 | 0.85 | 0.005 | 0.003 | 79.50 | 0.02 | 3.95 | Bal |

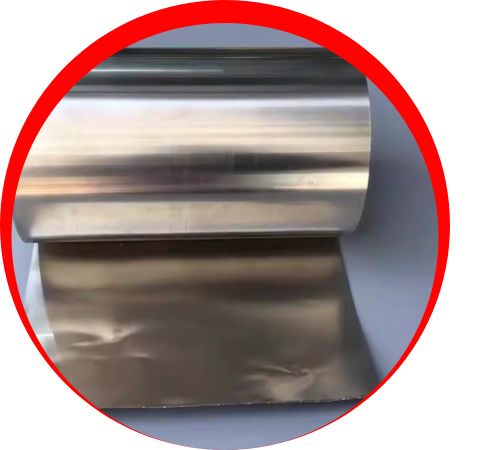

| 1J85 | 0.010 | 0.18 | 0.35 | 0.005 | 0.003 | 80.30 | 0.02 | 4.95 | Bal |
At Fajar Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Permalloy Foil in Jakarta, Indonesia, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Indonesia, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Permalloy Foil is extensively utilized in areas that require top-notch magnetic performance and effective shielding. In the electronics sector, it plays a crucial role in magnetic shielding for transformers, inductors, and sensors, helping to minimize electromagnetic interference (EMI). In telecommunications, it improves signal clarity in sensitive components like coils and chokes. Medical devices also benefit from Permalloy Foils for MRI shielding and precision diagnostics. Additionally, it finds applications in aerospace and automotive systems for electromagnetics, ensuring reliability and efficiency.
