Fajar Metals stands out as a reliable manufacturer and supplier of top-notch Niobium Sheets and Plates, proudly based in Jakarta, Indonesia. Our niobium products are celebrated for their remarkable resistance to corrosion, impressive melting point, and superb formability, making them ideal for critical applications in industries like aerospace, nuclear, electronics, and chemical processing. We provide niobium sheets and plates in a variety of thicknesses and dimensions, all precision-rolled and quality-checked to comply with international standards such as ASTM B393. With a strong focus on advanced materials and customer satisfaction, Fajar Metals delivers solutions that excel in high-temperature, chemically reactive, and technologically demanding environments.
Niobium Sheets and Plates from Fajar Metals are crafted from 99.9% pure niobium, guaranteeing high chemical purity and outstanding mechanical stability. Niobium boasts a density of 8.57 g/cm³, a melting point of 2477°C, and a tensile strength ranging from 275 to 550 MPa, depending on the condition and processing. This material is incredibly ductile, allowing for easy forming, welding, and fabrication without the risk of cracking. Our sheets and plates come in cold-rolled, annealed, or vacuum-annealed states, ensuring excellent flatness and surface quality for precise industrial and scientific applications.
| Grade : | Nb1,NbZr,R04200 |
| Standard : | ASTM B393-05 |
| Purity : | 99.95% |

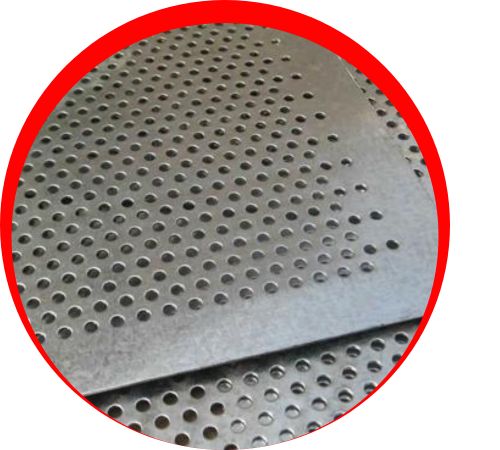

| Specialize sheets : | Shim, Perforated Sheet, B. Q. Profile. |
| Size: | Thick 0.1mm min.W680mm max. L3000mm max |
| Finish : | Cold rolled sheet (CR), 2D, Hot rolled plate (HR), 2B, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness : | Quarter Hard, Soft, Hard, Half Hard, Spring Hard etc. |
| Applications : | Semiconductor materials, vacuum coating, sintering trays and boats, special chemical applications. |
| STANDARD | UNS | Material No |
| Niobium | R04200 | – |
| Element | Type 1 (Reactor Grade Unalloyed Nb) R04200 | Type 2 (Commercial Grade Unalloyed Nb) R04210 | Type 3 (Reactor Grade Nb-1%Nb) R04251 | Type 4 (Commercial Grade Nb-1%Nb) R04261 |
| Max Weight % (Except Where Otherwise Specified) | ||||
| C | 0.01 | 0.01 | 0.01 | 0.01 |
| N | 0.01 | 0.01 | 0.01 | 0.01 |
| O | 0.015 | 0.025 | 0.015 | 0.025 |
| H | 0.0015 | 0.0015 | 0.0015 | 0.0015 |
| Zr | 0.02 | 0.02 | 0.8 – 1.2 | 0.8 – 1.2 |
| Ta | 0.1 | 0.3 | 0.1 | 0.5 |
| Fe | 0.005 | 0.01 | 0.005 | 0.01 |
| Si | 0.005 | 0.005 | 0.005 | 0.005 |
| W | 0.03 | 0.05 | 0.03 | 0.05 |
| Ni | 0.005 | 0.005 | 0.005 | 0.005 |
| Mo | 0.010 | 0.020 | 0.010 | 0.050 |
| Hf | 0.02 | 0.02 | 0.02 | 0.02 |
| Ti | 0.02 | 0.03 | 0.02 | 0.03 |
| Grade Chart | Tensile Ultimate Strength, Minimum,psi(MPa) | Yield Strength Minimum, psi (MPa) | Elongation in 1-inch | |
| 0.010 inch or Greater | Less Than 0.010 inch | |||
| Types 1 and 2 | 18 000 (125) | 10 500 (73) | 20 | 15 |
| Types 3 and 4 | 28 000 (195) | 18 000 (125) | 20 | 15 |
At Fajar Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Niobium Sheet and Plates in Jakarta, Indonesia, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Indonesia, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Niobium Sheets and Plates find their place in a variety of advanced and high-performance industries. In aerospace and jet propulsion systems, they are prized for their heat resistance and structural integrity. In the nuclear field, niobium is utilized in reactor components due to its low neutron absorption and stability under irradiation. The electronics sector employs it in superconductors, capacitors, and sputtering targets. In chemical processing, it serves as lining and cladding for equipment that encounters strong acids. Fajar Metals is dedicated to providing high-quality niobium solutions tailored for diverse applications.
