Based in Jakarta, Indonesia, Fajar Metals is a top producer and supplier of premium Nimonic 90 Bars. Delivering cutting-edge nickel-chromium-cobalt alloy bars made for high-temperature and high-stress settings is our area of expertise. Our Nimonic 90 Bars are designed to deliver exceptional performance in high-stress applications like gas turbines, power generation, and aerospace. These bars, which are made in accordance with international standards, have outstanding mechanical strength, resistance to oxidation, and thermal stability. Fajar Metals is a well-known supplier of high-performance alloy solutions in Indonesia and internationally thanks to its dedication to innovation, prompt delivery, and first-rate customer service.
About 58% nickel, 20% chromium, and 18% cobalt are important alloying elements in Nimonic 90, a nickel-chromium-cobalt alloy that also contains titanium and aluminium for precipitation hardening. It has outstanding resistance to oxidation, creep, and high temperatures. The alloy has an approximate yield strength of 690 MPa, a tensile strength of 965 MPa, and an elongation of 20%. It is perfect for use at temperatures up to 920°C because of its exceptional mechanical stability under thermal stress. Under cyclic loading conditions, Nimonic 90 is renowned for its remarkable fatigue resistance and structural integrity.
| Standards : | – |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

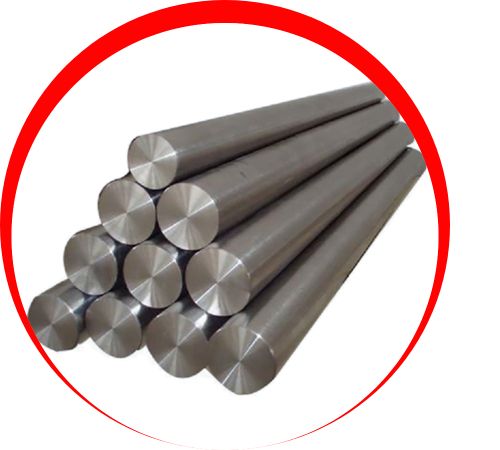

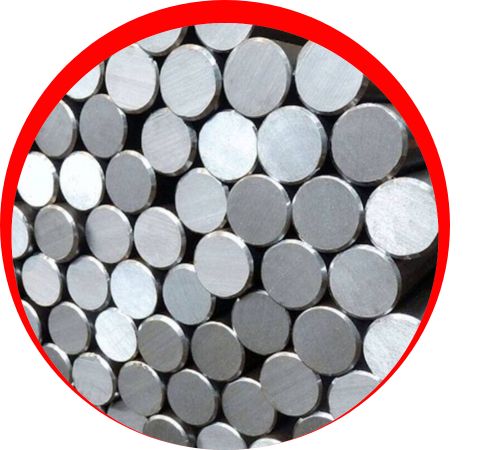

| Round bar size : | Diameter: 3-~800mm |

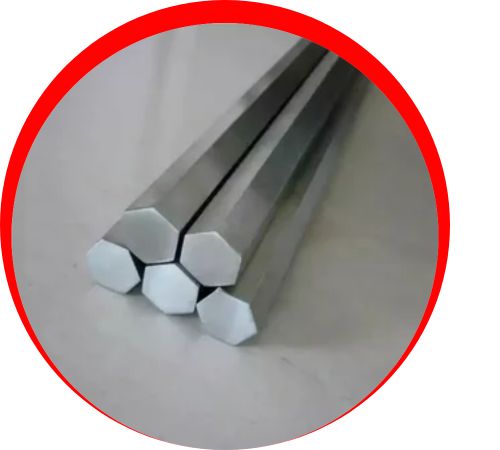

| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |
| Square bar size : | 4 to 100mm |

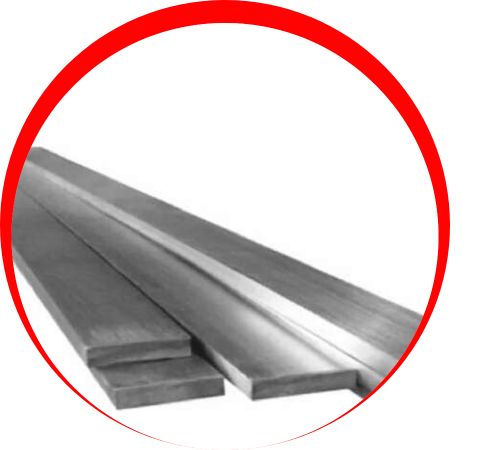

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Grade | Ni | Cr | Co | Ti | Al | C | Si | Cu | Fe | Mn | B | S | Zr | Pb |
| Nimonic 90 | Bal | 18-21 | 15-21 | 2-3 | 1-2 | 0.2 max | 1.0 max | 0.2 max | 1.5 max | 1.0 max | 0.02 max | 0.015 max | 0.15 max | 0.0020 max |
| Grade | Condition | Ultimate Tensile Strength MPA | Yield Strength MPA | Elongation on 4D (min) | Hardness min |
| Nimonic 80A | Solution Annealed & Precipatation Treated (aged) | 994 | 616 | 20 | 300 HV |
At Fajar Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Nimonic 90 Bar in Jakarta, Indonesia, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Indonesia, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
High-performance applications needing resistance to mechanical stress and extreme temperatures frequently use Nimonic 90 Bars. They are utilised in engine parts, turbine blades, discs, and rings in the aerospace sector. The alloy is also widely used in the power generation industry for combustion chambers, exhaust systems, and gas turbine parts. Nimonic 90 is also used in industrial furnaces, high-temperature fasteners, and nuclear reactors. It is the perfect material for components that are subjected to cyclic thermal and mechanical loading because of its capacity to maintain mechanical strength and resist oxidation under extreme circumstances, guaranteeing long-term dependability and safety in demanding environments.
