Home >Nimonic 80A Bar
In Jakarta, Indonesia, Fajar Metals is a top producer and supplier of high-quality Nimonic 80A bars. Our speciality is providing materials that satisfy the exacting requirements of the power generation, automotive, and aerospace industries. We have a solid reputation for delivering high-performance nickel-based alloys. Our Nimonic 80A Bars are made to be extremely strong and resistant to oxidation and high temperatures. These bars guarantee consistent mechanical properties and dimensional accuracy because they are produced in accordance with international quality standards. In Indonesia and globally, Fajar Metals is dedicated to providing dependable service, prompt delivery, and customised solutions for cutting-edge engineering applications.
About 76% nickel and 20% chromium make up Nimonic 80A, a nickel-chromium alloy with 2.3% titanium, 1.4% aluminium, and 4% carbon added. This precipitation-hardened alloy has outstanding resistance to oxidation and strength at high temperatures. Tensile strength of approximately 950 MPa, yield strength of 690 MPa, and exceptional creep resistance up to 815°C are among its typical mechanical characteristics. Additionally, the alloy exhibits favourable fatigue and stress-rupture characteristics, which makes it perfect for applications involving high temperatures, like exhaust valves and turbine parts.
| Standards : | Nimonic 80A Rod, Bar : BS 3076 HR1, ASTM B 637, AECMA PrEn2188, AECMA PrEn2189, AECMA PrEn 2190, AECMA PrEn 2396, AECMA PrEn2397, AIR 9165-37 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

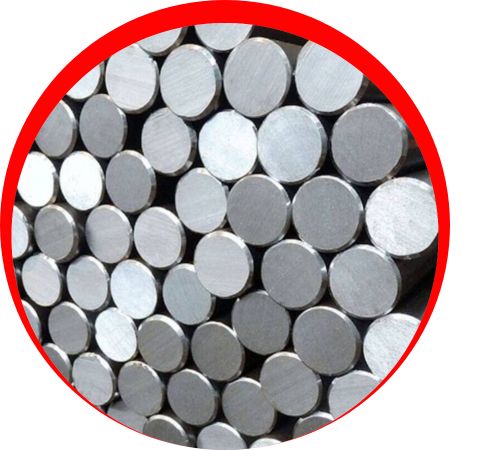

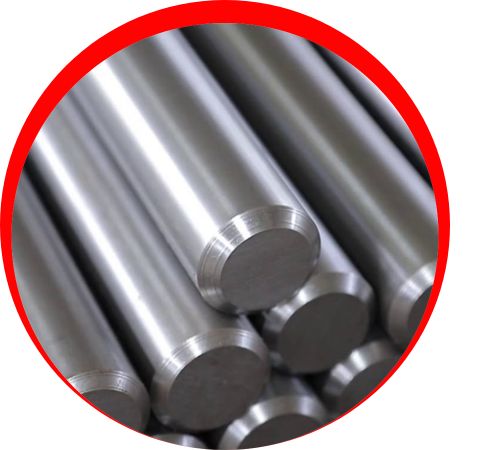

| Round bar size : | Diameter: 3-~800mm |

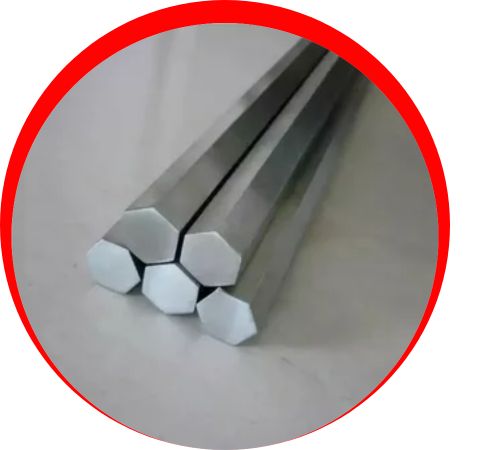

| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |
| Square bar size : | 4 to 100mm |

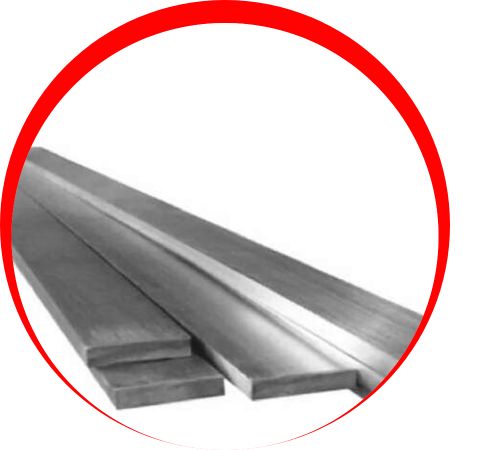

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Grade | Al | B | C | Cr | Co | Cu | Fe | Mn | Ni | P | Si | S |
| Nimonic 80A | 1 – 1.8 | 0.008 max | 0.1 max | 18 – 21 | 0.2 max | 0.2 max | 3 max | 1 max | Balance | 0.045 max | 1 max | 0.015 max |
| Grade | Condition | Ultimate Tensile Strength MPA | Yield Strength MPA | Elongation on 4D (min) | Hardness min |
| Nimonic 80A | Solution Annealed & Precipatation Treated (aged) | 994 | 616 | 20 | 300 HV |
At Fajar Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Nimonic 80A Bar in Jakarta, Indonesia, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Indonesia, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Nimonic 80A Bars are widely used in settings that demand structural integrity, oxidation resistance, and high temperature strength. Gas turbine blades, discs, rings, and casings are typical uses in the power generation and aerospace sectors. The alloy is appropriate for high-performance automotive components and exhaust valves in internal combustion engines due to its high creep and rupture resistance. It is also utilised in fasteners subjected to extended high-heat service, furnace components, and nuclear reactors. Nimonic 80A is a material of choice for critical components in thermal, mechanical, and corrosive operating conditions because of its exceptional mechanical qualities at high temperatures.
