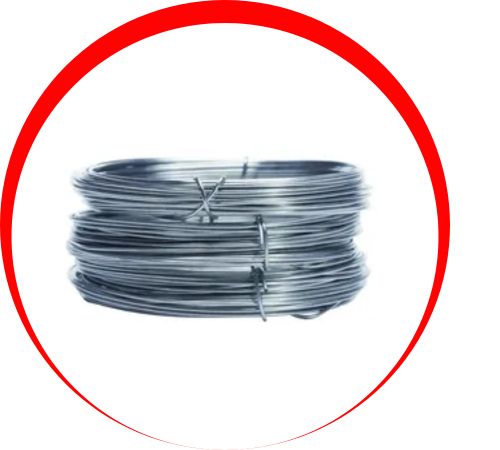

Fajar Nickel Alloys, a leading producer and supplier from Jakarta, Indonesia, is delighted to provide high–quality Monel K500 Wire, known for its exceptional strength and excellent corrosion resistance. With the addition of aluminum and titanium, this high-strength alloy wire offers superior mechanical and thermal characteristics, suitable for demanding and high-stress applications. Monel K500 Wire by Fajar Nickel Alloys is designed to the strict requirements of applications like marine, oil & gas, aerospace, and chemical processing. With our dedication to quality, innovation, and accuracy, every wire supplied by us conforms to rigorous international standards of endurance and performance.
Monel K500 Wire consists mainly of nickel (63%) and copper (27–33%), with minor but vital additions of aluminum and titanium. These alloying additions greatly improve its strength by age hardening. The wire has high tensile strength (at least 110 ksi), good stiffness, and high fatigue resistance. It is non-magnetic, even at sub-zero temperature, and retains mechanical properties at high pressure and temperature. Monel K500 also possesses superior corrosion resistance, especially in seawater and chemical environments, which makes it a good fit for applications that value reliability and durability.
| Specifications | : | ASTM B865 ASME SB865 |
| Dimensions | : | ANSI/AWCI – 01 -1992 and ASTM E 2016-11 and RRW 360 |
| Length | : | 100 mm TO 6000 mm |
| Diameter | : | 10 mm To 100 mm |

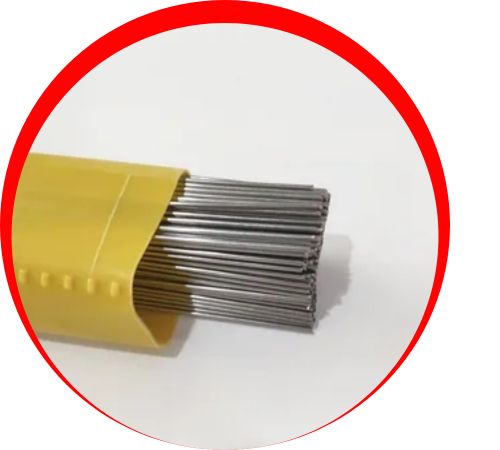

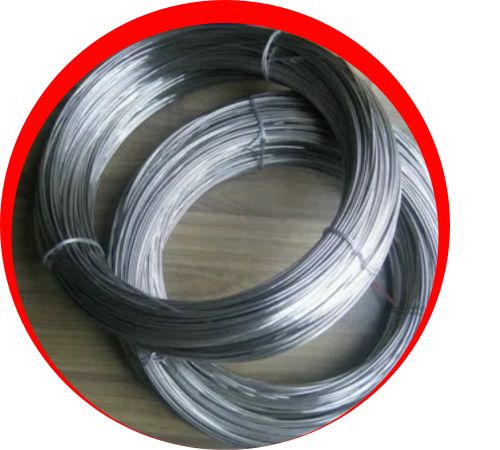

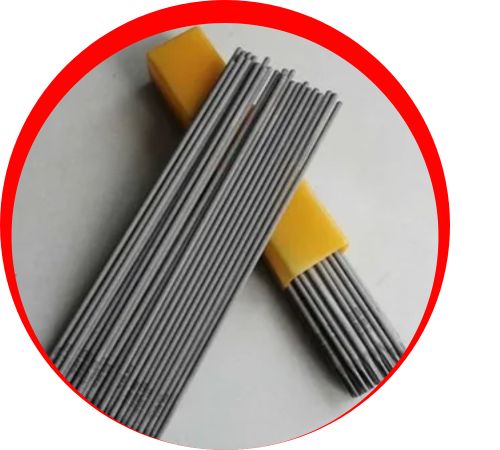

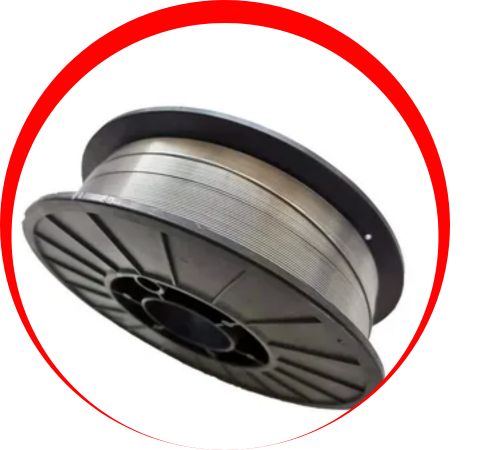

| Specialize | : | Filler Wire, Coil Wire, Electrode Wire, Welding Wire. |
| Grade | C | Mn | Si | Cu | S | Cr | Fe | Ni | N |
| Monel K500 | 0.25 max | 1.50 max | 0.50 max | 27.0-33.0 | 0.10max | – | 0.5-2.0 max | 63.00 min | – |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel K500 | 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 1,60,000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20% |
At Fajar Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Monel K500 Wire in Jakarta, Indonesia, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Indonesia, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Monel K500 Wire has a broad usage in industries where strength at high levels, corrosion resistance, and thermal stability are required. In the marine industry, it is applied to springs, cable sheathing, and fasteners on ships and submarines. The oil and gas sector utilizes it in pumps, valves, wellheads, and drilling equipment subjected to aggressive and corrosive environments. In the aerospace field, Monel K500 Wire is utilized for use in turbine blades, fasteners, and structural elements demanding superior mechanical performance. Chemical plants also use Monel K500 Wire for applications with acidic and alkaline mediums. Its versatility and resistance make it a reliable material in critical systems.
