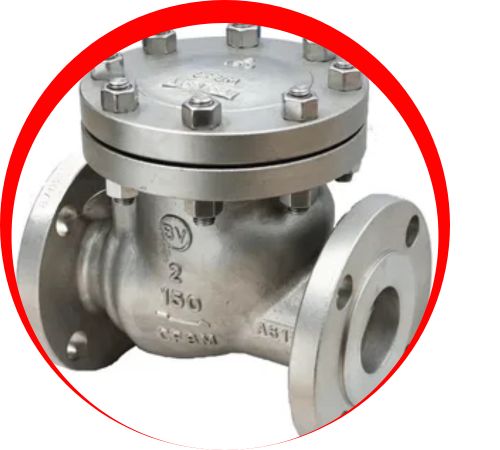

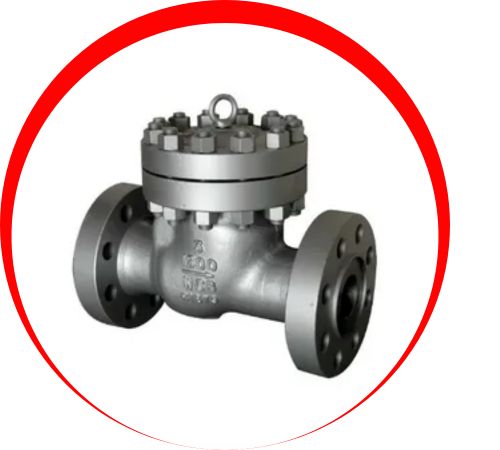

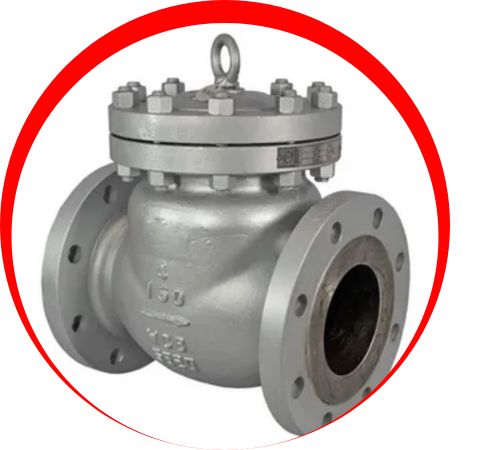

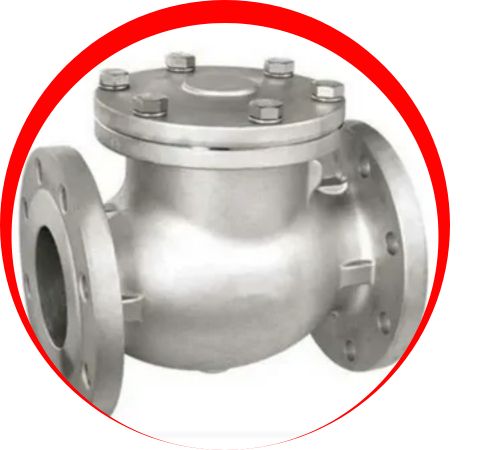

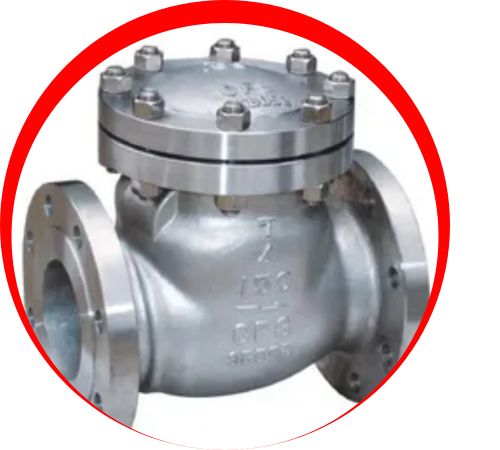

Fajar Metals is a well-respected manufacturer and supplier of Monel Check Valves, located in Jakarta, Indonesia. Crafted from high-quality Monel alloys like Monel 400 and Monel K500, these valves are known for their outstanding corrosion resistance, especially in marine, chemical, and offshore oil & gas settings. They’re designed to facilitate one-way flow and prevent backflow, making them perfect for critical flow control systems. With a variety of sizes, pressure ratings, and end connections available, all valves meet international standards such as ASTM, ASME, and API. Fajar Metals guarantees reliable sealing, a long service life, and top-notch performance even in harsh conditions.
Monel Check Valves are constructed from Monel 400 (which is about 63% nickel and 30–33% copper) or Monel K500, the latter of which includes aluminum and titanium for added strength through precipitation hardening. Monel 400 boasts a tensile strength of 480–620 MPa, while Monel K500 can reach up to 960 MPa. These alloys are highly resistant to seawater, acids, alkalis, and stress corrosion caused by chlorides. Fajar Metals’ Monel check valves are precision-engineered with corrosion-resistant internals, ensuring reliable, leak-free operation. They come in swing, lift, and spring-loaded designs, built to withstand high pressure and temperature while maintaining flow integrity.
| INSTRUMENTATION VALVES MATERIAL | MONEL |
| INSTRUMENTATION VALVES SIZE | 6 MM TO 50 MM and 1/8″ TO 2″ |
| CONNECTION | SOCKET WELD END, TUBE END, THREADED, FLANGE END |
| THREADS | BSPP, NPT, METRIC, BSPT,UNF, JIC |
| PATTERN FLOW | STRAIGHT |
| MEDIA TEMPERATURE | (-50* C – 350*C ) AS PER PRESSURE RANGE |
| INSTRUMENTATION VALVES BODY SHAPE | HEXAGON |
| INSTRUMENTATION VALVES ORIFICE SIZE | 2 MM – 40 MM |
| RATING PRESSURE | 20000 PSI, 1500 PSI, 10000 PSI, 3000 PSI, 6000 PSI, 15,000 PSI |
| EQUIVALENT BRANDS | PARKER, SWAGELOK, DK-LOK, STAUFF, OLIVER VALVES, HAMLET, HOKE |
| CRACKING PRESSURE | 0.5 BAR |
| MEDIA | SEA WATER , HYDRAULIC AIR, OIL, GAS, WATER, HOT WATER , STEAM, COLD WATER , CHEMICAL |
| TYPE | SPRING TYPE, POPPET TYPE |
| BODY TYPE | FORGED, BAR STOCK |
| INSTRUMENTATION VALVES PACKING DETAILS | WOODEN PALLET, BOX PACKING |
At Fajar Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Monel Check Valve in Jakarta, Indonesia, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Indonesia, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Monel Check Valves are perfect for flow control in environments that are both highly corrosive and under high pressure. In the marine sector, they’re utilized in seawater piping, ballast systems, and cooling circuits. Chemical processing plants rely on them for acid-handling and caustic systems to prevent backflow. The oil and gas industry uses them in offshore rigs, refineries, and sour gas lines. They’re also found in desalination plants, power generation facilities, and nuclear systems where reliability and corrosion resistance are crucial. Fajar Metals provides Monel Check Valves designed for durability and performance.
