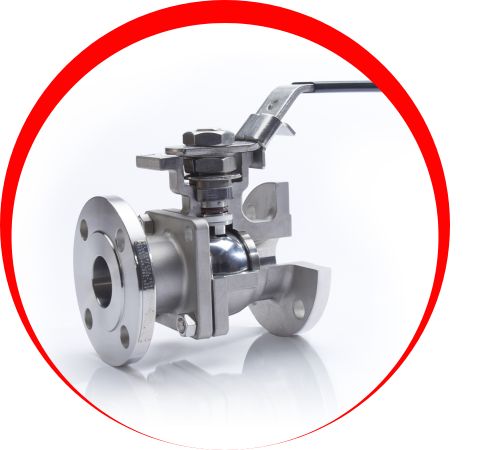

Fajar Nickel Alloys is a renowned manufacturer and distributor of Inconel ball valves, having its headquarters in Jakarta, Indonesia. Our ball valves are carefully engineered to provide superior performance in the toughest industrial conditions. These ball valves are constructed using high-quality Inconel alloys and are highly resistant to corrosion, mechanical stresses, and thermal fluctuations. Whether for aerospace, marine, medical, or oil and gas applications, our products are built to handle extreme pressures, temperatures, and corrosive chemicals. At Fajar Nickel Alloys, we practice rigorous quality control to make sure that every valve meets international standards—providing you with dependable, high-performance solutions for critical operations.
Inconel ball valves are mainly built from Inconel 625 or 718, nickel-chromium-based superalloys. These alloys characteristically consist of nickel (58–72%), chromium (14–23%), molybdenum, niobium, and minute traces of titanium and iron. They have high tensile strength (up to 1380 MPa), resistance to oxidation at temperatures above 1000°C, and high stress and creep resistance. Inconel ball valves maintain their strength and gasketing properties in high pressure and thermal variation, and are therefore best suited for use with harsh chemicals, aggressive media, and high temperatures.
| VALVE SIZE | 6 MM TO 50 MM or 1/8″ TO 2″ |
| SPECIFICATION | ASME B16.34, BS 5352, ASME SA494/ASTM A494 API 602, ASME B16.5, ASME B1.20.1, ASME B16.25, ASME B16.10, ASME B16.11, DIN3352 |
| CONNECTION | TUBE END, WELD NIPPLE,THREADED, SOCKET WELD, BUTT WELD, FLANGED, SAE |
| THREAD | METRIC, BSPP, NPT, JIC, BSPT, UNF |
| FUNCTION | 4 WAY, 3 WAY, 2 WAY, 5 WAY, |
| SEAL RING MATERIAL | PVDF, PTFE, PEEK, DELRIN, GRAPHITE |
| PRESSURE RATING | 15000 PSI, 3000 PSI, 1500 PSI, 10000 PSI, 6000 PSI, 20000 PSI |
| GRADE | INCONEL 625, 600, 800, 718, 825, ALLOY 20 |
| EQUIVALENT BRANDS | OLIVER VALVES, PARKER, SWAGELOK, HAMLET, DK-LOK, HOKE |
| MEDIA | AIR, HYDRAULIC OIL, GAS, WATER, HOT WATER , STEAM, SEA WATER , COLD WATER , CHEMICAL |
| STANDARD | DIN , ISO , API , ANSI , AWWA , ASME , MSS , |
| BODY TYPE | BAR STOCK |
| MEDIA TEMPERATURE | (-120* C – 500*C ) AS PER PRESSURE RANGE |
| PACKING DETAILS | WOODEN PALLET, BOX PACKING |
| Grade | Mn | Al-Ti | C | Si | S | Fe | Cr2 | Ni | |
| Inconel Ball Valve | min. | – | – | – | – | – | – | 20.0 | 58.0 |
| max. | 0.50 | 0.40 | 0.10 | 0.50 | 0.015 | 5.0 | 23.0 | – | |
| Grade | Strength of Yield 0.2% Proof (MPa) minimum | Elongation (% in 50mm) minimum | Strength of Tensile (MPa) minimum | Hardness | |
| Brinell (HB) maximum | Rockwell B (HR B) maximum | ||||
| Inconel Ball Valve | Psi – 75,000 , MPa – 517 | 42.5 | Psi – 1,35,000 , MPa -930 | – | – |
At Fajar Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Inconel Ball Valve in Jakarta, Indonesia, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Indonesia, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Inconel ball valves are applied extensively in industries requiring high performance under extreme conditions. In chemical processing, they withstand corrosive acids and solvents. In aerospace, they are crucial in high-temperature fuel and hydraulic applications. Marine uses them for saltwater corrosion resistance. The oil and gas industry relies on Inconel ball valves for the management of high-pressure steam, sour gas, and corrosive fluids. These valves are also used in power generation, nuclear power plants, and petrochemical refineries, wherein reliability and durability are paramount. Their wear-resistant and long-life capabilities make them suitable for safety-critical applications.
