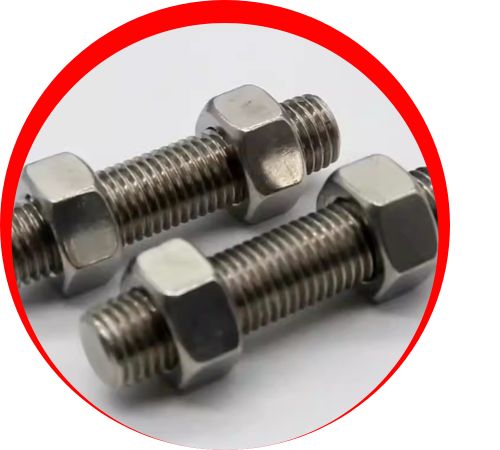

Fajar Metals, a leading manufacturer and supplier located in Jakarta, Indonesia, specializes in high-quality Inconel 718 Stud Bolts that are designed to perform exceptionally well in the toughest conditions. Crafted from Inconel 718, a robust nickel-chromium superalloy, these stud bolts excel in high-temperature, high-pressure, and corrosive environments. They are produced in accordance with ASTM B637, ASTM F2281, and other global standards, making them a popular choice in industries like aerospace, power generation, petrochemical, and marine. Fajar Metals offers a diverse selection of thread types and sizes, ensuring dependable and secure fastening solutions for both structural and critical equipment applications.
Inconel 718 Stud Bolts are mainly made up of Nickel (50–55%), Chromium (17–21%), along with Molybdenum, Niobium, Titanium, Iron, and trace elements. This alloy boasts remarkable resistance to creep, oxidation, stress-corrosion cracking, and thermal fatigue. Typically, these stud bolts deliver a tensile strength of up to 1240 MPa, a yield strength of 1035 MPa, and impressive elongation with outstanding fatigue resistance. The precipitation-hardening feature of Inconel 718 guarantees that strength is maintained in both cryogenic and high-temperature settings, making these fasteners perfect for extreme mechanical and thermal applications.
| Specification | ASTM F468, B637 / ASME SF468, SB637 |
|---|---|
| Size | M02 to M33, Custom Sizes |
| Length | 3 mm to 200 mm |
| Stud Bolt | UNF, BSW, BSF, METRIC, UNC, or as required |
| Standard | DIN 525, DIN 835, DIN 938, DIN 939, DIN 940, DIN 949-1, DIN 949-2, DIN 975, DIN 976, DIN 2509, BS 2693, BS 3692, BS 4439, IS 1862, IS 13178, ANSI/ASME B18.31.2, ANSI/ASME B16.5 |
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Types | Stud Bolts, Fully Threaded Stud Bolts, Tap End Stud Bolts, Double End Stud Bolts, Stud Bolts with Reduced Shank, Reduced Shank, Flange Stud Bolts, Flange Bolting, Weld Studs |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Test Certificate | as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Additional Certifications | PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Production process | M24-M100: hot forging, M2-M24: Cold Froging, for custom-made connecting element machining and CNC |
| Head drive of Stud Bolts | Six-Lobe, Phillips, Phillips/Slot, Slotted etc |
| Packing of Stud Bolts | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating | Ptfe Coated Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 718 | 0.08 max | 0.35 max | 0.35 max | 0.015 max | 0.30 max | – | 50.00 – 55.00 | 17.00 – 21.00 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 718 | 8.2 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 482 | 45 % |
At Fajar Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Inconel 718 Stud Bolts in Jakarta, Indonesia, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Indonesia, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Inconel 718 stud bolts are used in high temperature and high-pressure environments where exceptional strength and corrosion resistance are critical. Typical applications include aerospace applications such as turbine engines and exhaust systems, where their thermal resistance ensures reliability. It is used in oil and gas drilling and power generation equipment to ensure longevity under extreme conditions. Additionally, Inconel 718 stud bolts are used in nuclear reactors for their resistance to wind and thermal stresses, providing long service life and reliability under harsh industrial conditions.
