Fajar Metals, a well-respected manufacturer and supplier located in Jakarta, Indonesia, focuses on providing top-notch Inconel 617 Forged Fittings designed for high-performance industrial uses. These fittings are made from Inconel 617, a robust nickel-chromium-cobalt-molybdenum alloy celebrated for its outstanding strength, resistance to creep, and ability to withstand oxidation at high temperatures. Adhering to ASTM B564 and ASME B16.11 standards, the product lineup features forged elbows, tees, couplings, nipples, and reducers, available in both socket weld and threaded styles. These fittings are perfect for demanding environments in aerospace, chemical processing, power generation, and nuclear applications, where durability and thermal stability are crucial.
Inconel 617 Forged Fittings are made up of Nickel (44.5–62%), Chromium (20–24%), Cobalt (10–15%), and Molybdenum (8–10%), along with small amounts of Aluminum, Carbon, and Iron. This unique blend offers remarkable resistance to oxidation, creep, and carburization at temperatures reaching up to 1100°C. The forged fittings boast impressive tensile strength (~750 MPa), yield strength (~350 MPa), and outstanding creep rupture characteristics. Their metallurgical stability and thermal resilience make them perfect for long-term use in both reducing and oxidizing environments typically found in high-temperature and corrosive industrial processes.
| Standards | ASTM B564/ ASME SB564 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |

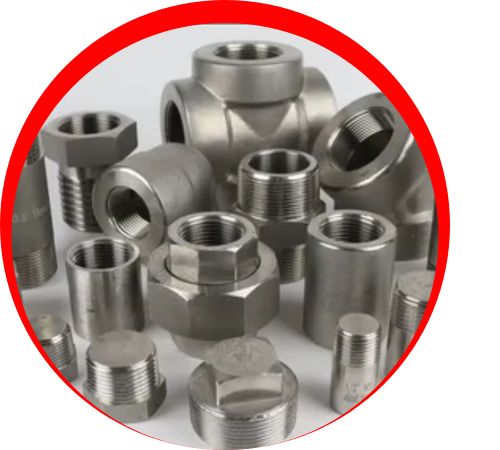

| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Forged Fittings Thread | NPT, BSPT, BSPP |
| Forged Fittings Test Certificates |
|

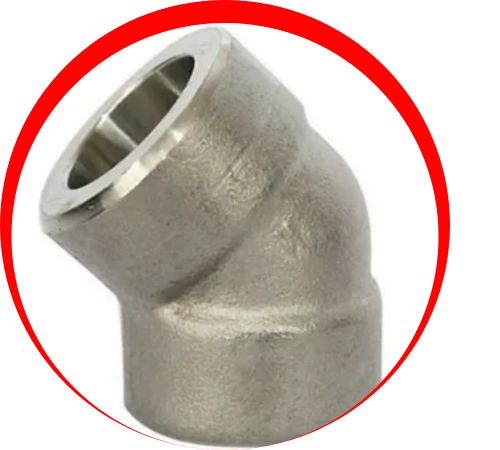

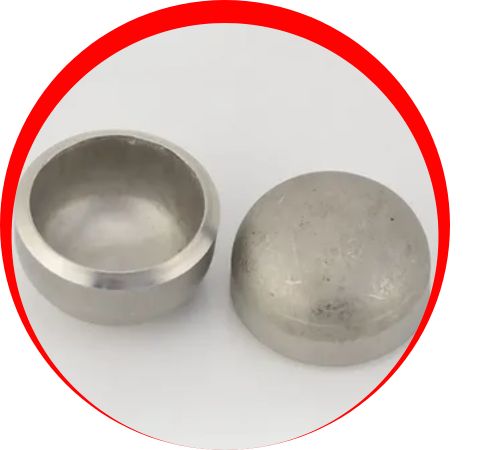

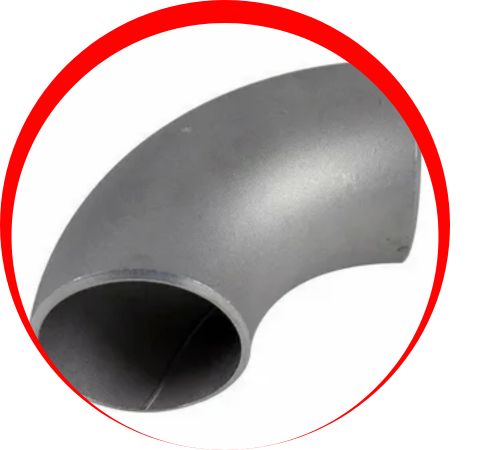

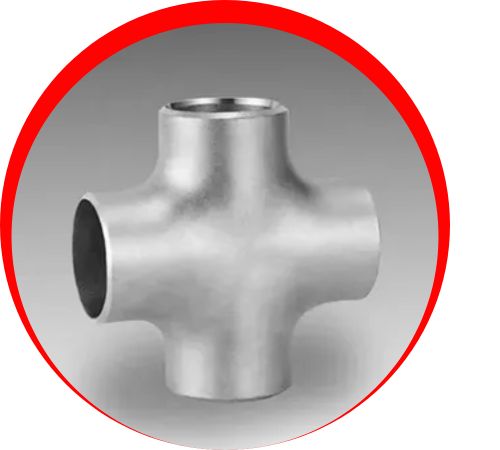

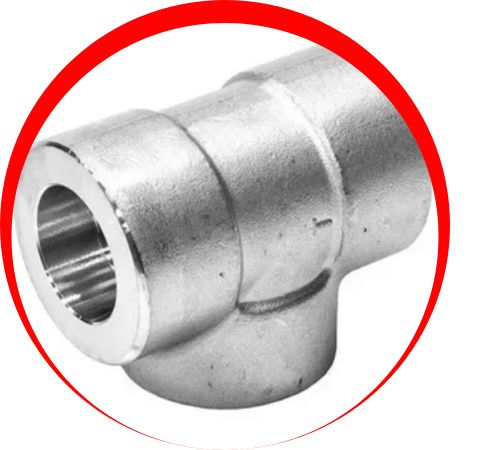

| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducers, Inserts, Caps, Nipples, and Unions, Forged Pipe Fittings, Socket Weld & Threaded, Equal Tees & Reducing Tees, 90° & 45° Elbows, Plugs |
| C | Mn | S | Si | Cr | Mo | Ni | Cu | Ti | Al | B | Co | Fe |
| 0.05-0.15 | 1.0 Max | 0.015 Max | 1.0 Max | 20.0-24.0 | 8.0-10.0 | 44.5 Min | 0.5 Max | 0.6 Max | 0.8-1.5 | 0.006 Max | 10.0-15.0 | 3.0 Max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
At Fajar Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Inconel 617 Forged Fittings in Jakarta, Indonesia, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Indonesia, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Inconel 617 forged fittings are required for high temperature, high pressure applications. Made from a nickel-chromium-cobalt alloy, these products excel in high-temperature environments and hot conditions. Because of their excellent resistance to oxidation and carburization, they are widely used in the aerospace, pharmaceutical and electrical industries. Their strength and robustness make them ideal for applications such as gas turbines, reactor components and high-pressure systems, ensuring reliable and durable operation in harsh conditions.
