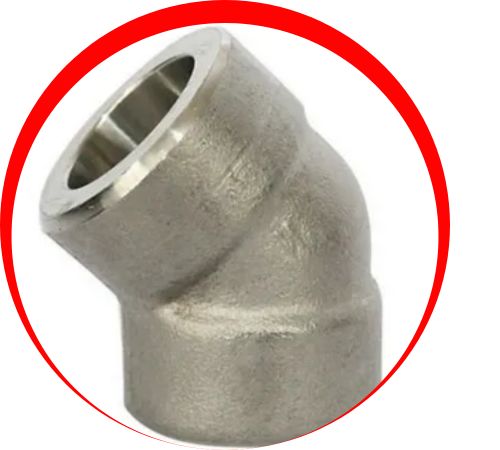

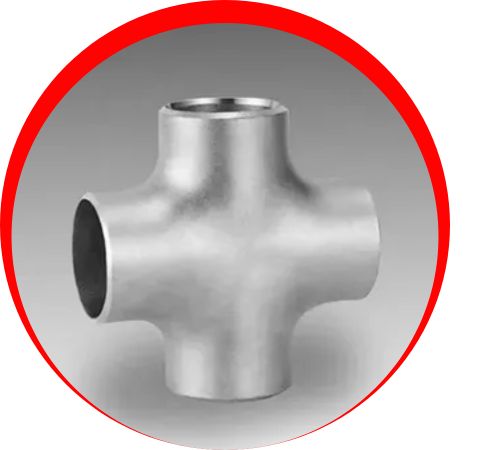

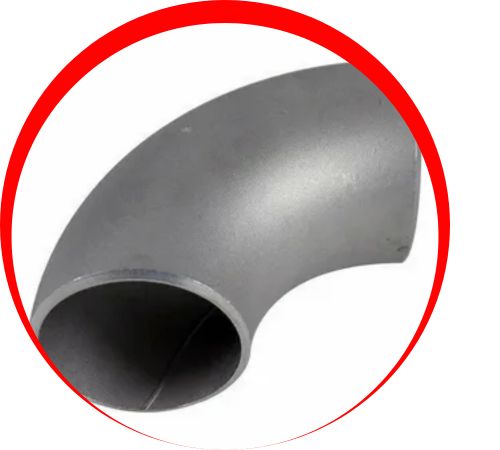

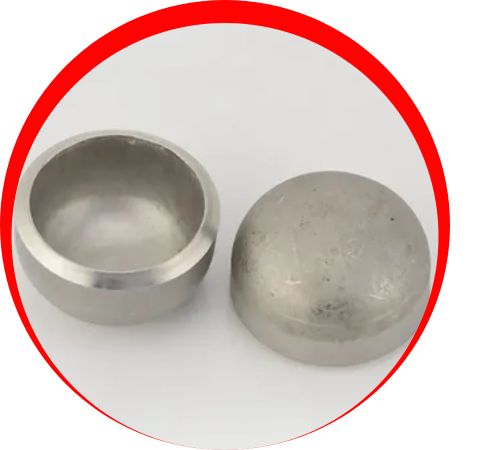

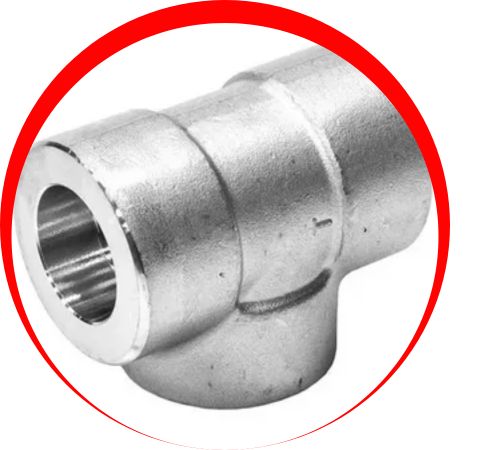

Fajar Metals stands out as a premier manufacturer and supplier based in Jakarta, Indonesia, offering top-notch Inconel 601 Forged Fittings that are built to last and perform exceptionally in harsh conditions. Made from a nickel-chromium-iron alloy, these fittings boast impressive resistance to oxidation, scaling, and high-temperature corrosion. They’re crafted to meet standards like ASTM B564 and come in a variety of shapes, including elbows, tees, couplings, unions, and crosses. Inconel 601 forged fittings are perfect for high-pressure, high-temperature applications across sectors such as chemical processing, aerospace, power generation, and thermal processing, where mechanical strength and corrosion resistance are essential.
Inconel 601 Forged Fittings are made up of Nickel (58–63%), Chromium (21–25%), and Iron, along with small amounts of Aluminum (1–1.7%), Carbon, Silicon, and trace elements. This unique blend provides outstanding oxidation resistance up to 1200°C, making them perfect for high-heat situations. Their mechanical properties include a tensile strength ranging from 600–750 MPa, yield strength exceeding 300 MPa, and impressive ductility, creep resistance, and thermal fatigue resistance. These fittings maintain their strength and shape even under cyclic heating and corrosive environments, ensuring dependable performance in the toughest service conditions.

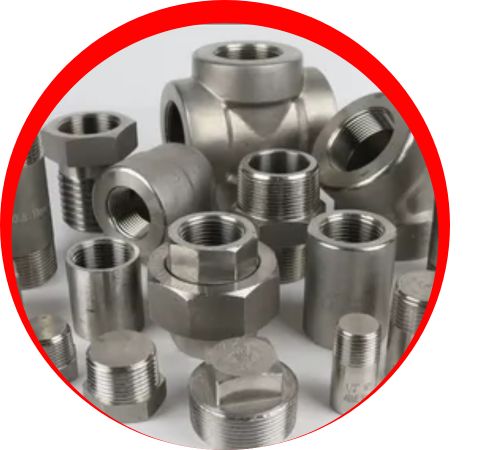

| Inconel 601 Threaded Fittings Specifications | ||
| Specifications | ASTM B564 & ASME B564 | |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) | |
| Standards | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 | |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS | |
| Type | Socketweld Fittings | |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 601 | 0.10 max | 1.0 max | 0.5 max | 0.015 max | 1.0 max | Balance | 58.0 – 63.0 | 21.0 – 25.0 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 601 | 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
At Fajar Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Inconel 601 Forged Fittings in Jakarta, Indonesia, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Indonesia, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
The Inconel 601 forged fitting is designed for high temperature applications, providing excellent resistance to oxidation and carburization. Widely used in the aerospace, petroleum and electrical industries, these materials are ideal for materials that must withstand extreme temperatures and environmental corrosion Their high strength and durability provide suitable for use in furnace components, gas turbines and heat exchangers. Able to maintain structural integrity at high temperatures, Inconel 601 fittings ensure reliable performance and durability under extreme conditions
