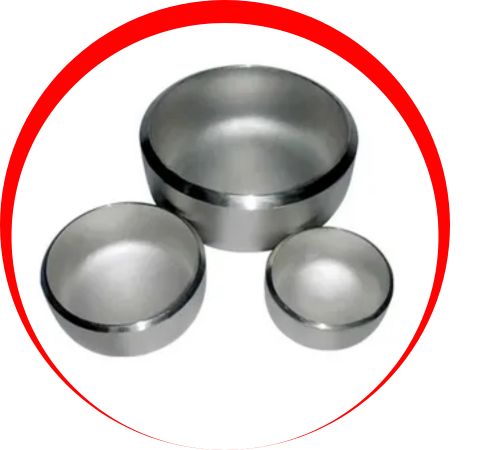

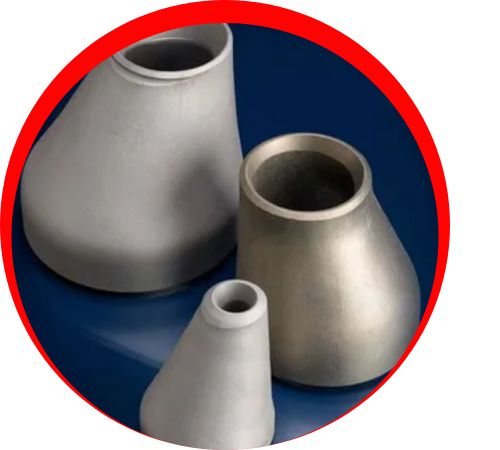

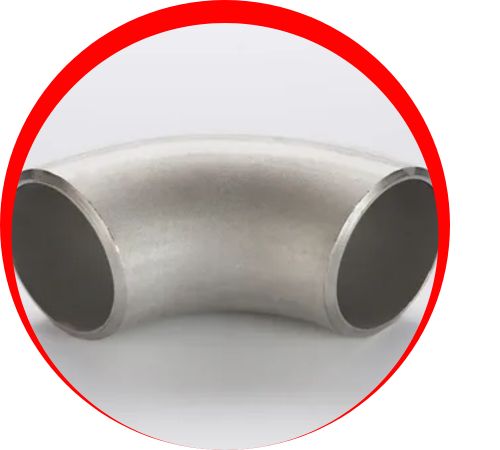

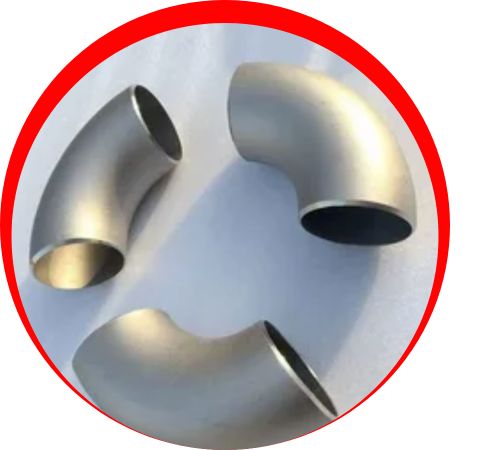

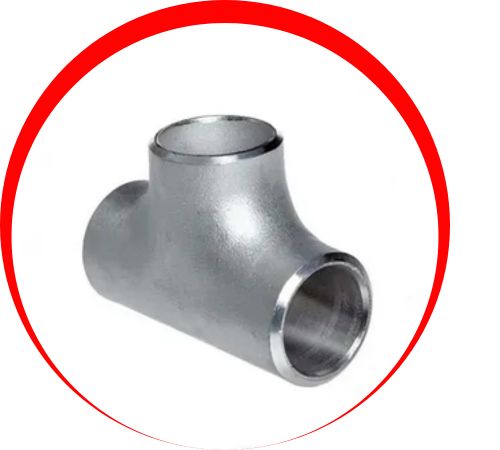

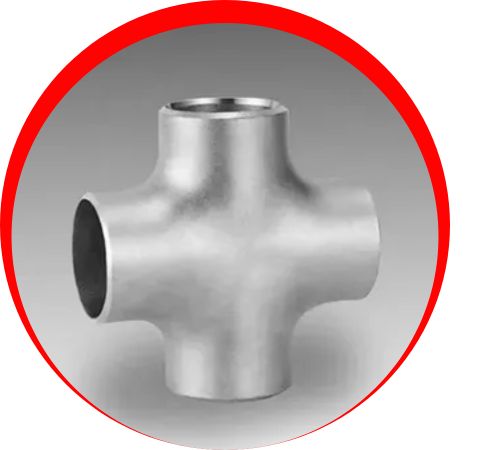

Fajar Metals, a reputable manufacturer and supplier located in Jakarta, Indonesia, specializes in top-notch Inconel 600 Pipe Fittings that are built to endure harsh chemical and thermal conditions. Crafted from a high-performance nickel-chromium-iron alloy, these fittings are renowned for their outstanding resistance to oxidation, corrosion, and stress cracking caused by chlorides. They come in various forms, including elbows, tees, reducers, caps, and crosses, all adhering to international standards like ASTM B366. Perfect for sectors like chemical processing, power generation, aerospace, and marine engineering, Inconel 600 pipe fittings guarantee leak-proof, corrosion-resistant connections in high-pressure and high-temperature settings.
Inconel 600 Pipe Fittings are made up of a well-balanced mix of Nickel (≥72%), Chromium (14–17%), and Iron (6–10%), along with small amounts of Manganese, Carbon, Silicon, and Copper. This unique alloy offers remarkable resistance to oxidation, carburization, and a variety of acids and alkalis. The fittings boast a tensile strength ranging from 550 to 690 MPa and a yield strength between 240 and 300 MPa, along with excellent thermal and mechanical stability. These properties allow the fittings to maintain their integrity even under fluctuating temperatures and challenging operating conditions, making them ideal for both structural and process piping needs.
Specifications : ASTM B366 / ASME SB366
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : Seamless Butt Weld Fittings: 1/2″ – 10″, Welded Butt Weld Fittings: 1/2″ – 48″
Type : Seamless / Welded / Fabricated
Schedule : Sch 5 TO Sch XXS.
Thickness : 20 Swg., 18 Swg., 16 Swg., 14 Swg., 12 Swg., 10 Swg., & Sch. 10, Sch. 40, Sch. 80 etc
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| 600 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
At Fajar Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Inconel 600 Pipe Fittings in Jakarta, Indonesia, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Indonesia, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Inconel 600 pipe fittings are widely used in high-temperature and corrosive environments due to their excellent oxidation and corrosion resistance. Common applications include chemical processing, aerospace components, nuclear reactors, and power generation systems. Their ability to withstand extreme temperatures and harsh conditions makes them ideal for use in furnace components, heat exchangers, and gas turbine engines. Inconel 600’s resistance to chloride stress-corrosion cracking and high-temperature oxidation ensures durability and reliability in critical industrial processes.
