Fajar Metals, a top-notch manufacturer and supplier located in Jakarta, Indonesia, specializes in high-quality Inconel 600 Forged Fittings that are built to thrive in harsh, corrosive, and high-temperature settings. Crafted from a nickel-chromium-iron alloy, these fittings boast exceptional resistance to oxidation, carburization, and stress corrosion cracking caused by chlorides. They meet international standards like ASTM B564 and come in various configurations, including elbows, tees, couplings, unions, and crosses. Inconel 600 forged fittings are perfect for critical piping systems in industries such as chemical processing, nuclear power, marine applications, and aerospace, where reliability and resistance to thermal and chemical wear are crucial.
Inconel 600 Forged Fittings are primarily made up of Nickel (at least 72%), Chromium (14–17%), and Iron (6–10%), along with small amounts of Carbon, Manganese, Silicon, and Copper. This unique blend gives them remarkable resistance to corrosion and oxidation across a broad temperature range. These fittings showcase a tensile strength of 550–690 MPa, yield strength of 240–300 MPa, and impressive elongation and ductility. Inconel 600 remains mechanically stable even under thermal cycling and corrosive conditions, making it a go-to choice for high-pressure, high-temperature, and aggressive chemical service environments.
| Standards | ASTM, ASME |
| Designation | B564, SB564 |
| Dimension Standard | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Grade | Inconel 600 Forged Fittings. |

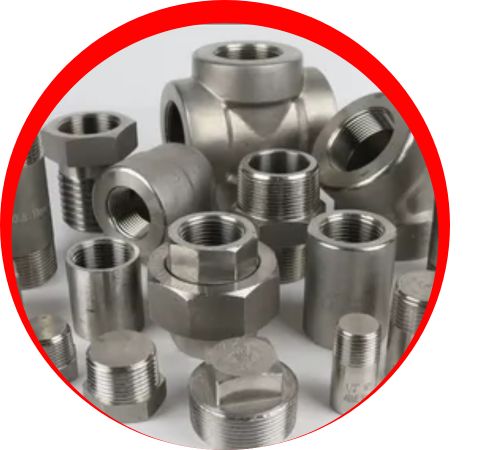

| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |

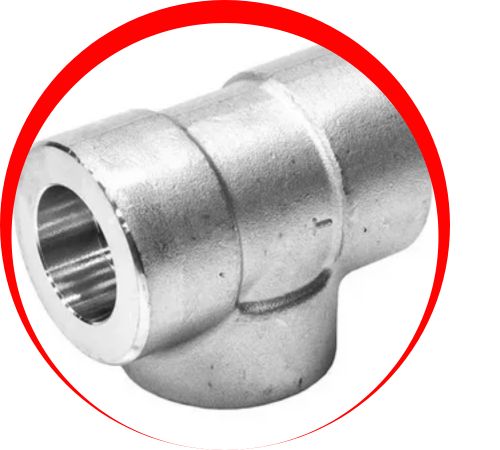

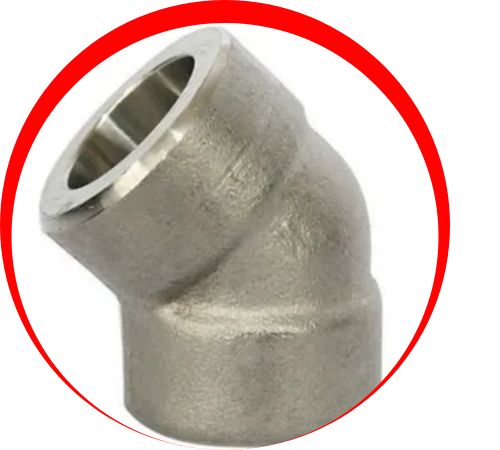

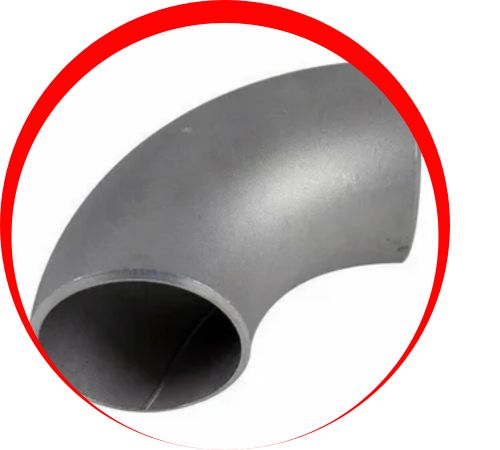

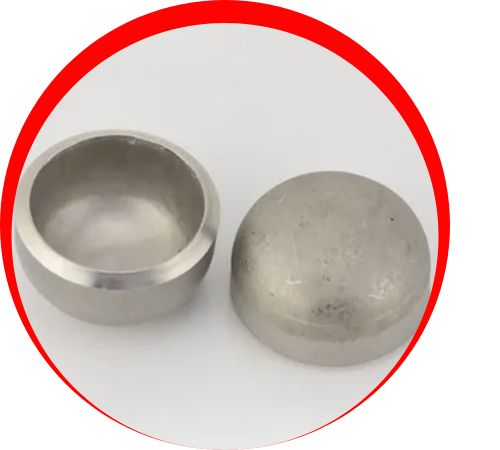

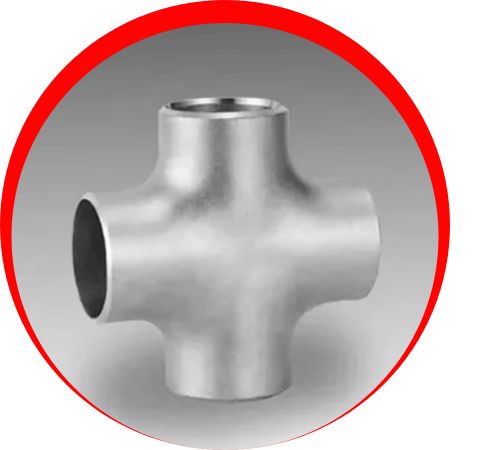

| Types of Forged Fittings | Elbow, Tee, Union, Cross, Swage Nipples, Coupling, CAP, Plug, Bush. |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
At Fajar Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Inconel 600 Forged Fittings in Jakarta, Indonesia, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Indonesia, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Inconel 600 forged fittings are widely used in high-temperature and corrosive environments due to their exceptional resistance to oxidation, corrosion, and thermal stress. They are commonly applied in chemical processing, nuclear reactors, aerospace, and marine engineering, where they ensure reliable performance under extreme conditions. These fittings are ideal for heat exchangers, furnace components, and gas turbines, providing longevity and durability in harsh operating environments. Their versatility and robustness make them essential in industries requiring high-performance materials.
