Fajar Metals, a leading manufacturer and supplier based in Jakarta, Indonesia, specializes in high-quality Inconel 600 Bars designed for a variety of high-temperature and corrosive applications. These bars are crafted from a nickel-chromium-iron alloy, renowned for its exceptional resistance to oxidation, carburization, and stress corrosion cracking caused by chlorides. Adhering to standards like ASTM B166, Inconel 600 bars come in various shapes, including round, square, hexagonal, and flat profiles. They find extensive use in industries such as chemical processing, aerospace, power generation, and marine, delivering remarkable strength and stability even in extreme thermal and chemical conditions.
Inconel 600 Bars are made up of Nickel (at least 72%), Chromium (14–17%), and Iron (6–10%), along with trace amounts of Manganese, Carbon, Silicon, and Copper. This unique blend enables the material to excel in high-temperature oxidation and corrosion scenarios. With a tensile strength ranging from 550 to 690 MPa and a yield strength between 240 and 300 MPa, these bars also boast excellent creep resistance. They maintain their structural integrity across a wide temperature spectrum and are particularly effective in environments with thermal cycling. These characteristics make them perfect for high-performance mechanical and structural applications.
| Specification | ASTM B166 UNS N06600, AMS 5665 |
|---|---|

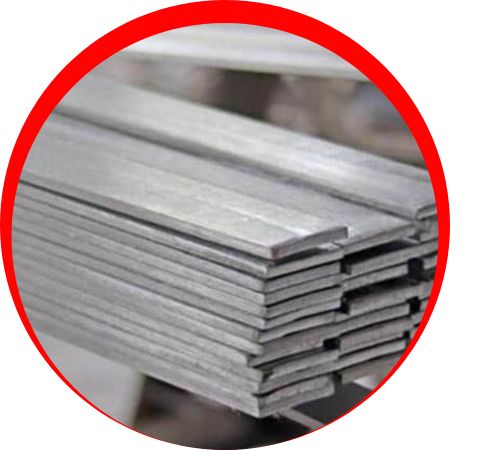

| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |

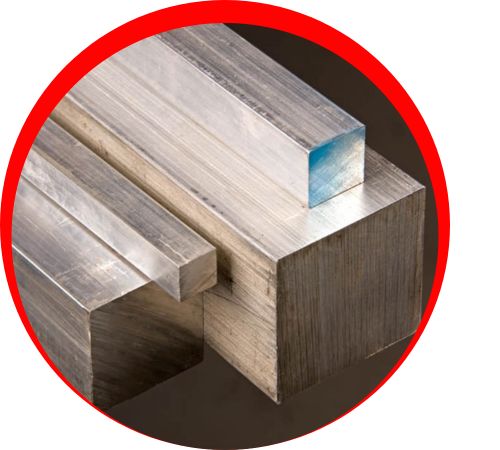

| Square bar size | 4 to 100mm |

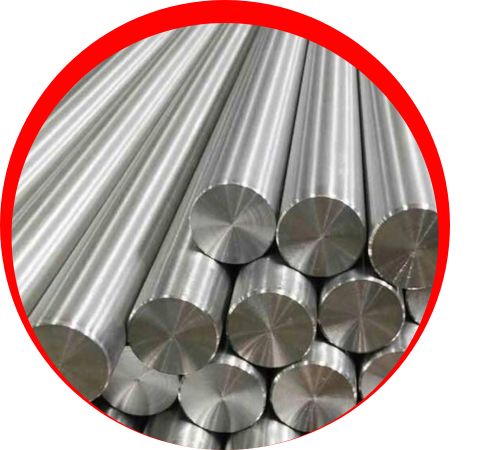

| Round bar size | Diameter: 3-~800mm |

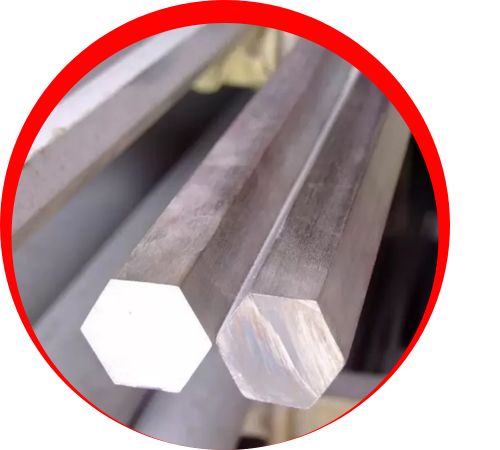

| Hex Bar size | 2-100mm A/F |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Section | 3.0 to 12.0mm thickness |

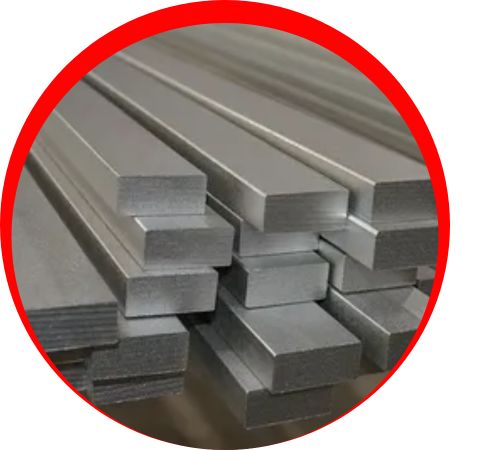

| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Billet Size | 1/2″ to 495mm Diameter |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Condition | Hardened & tempered, annealed |
| Technique | 600 Inconel Cold Drawn, Hot Rolled, Forged Round Bar, Rod, Cold Rolled |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Cold Drawn, Bright, Sand Blasting Finished, Hot Rolled Pickled, Hairline, Polished |
| Processing | Bar cutting to 650mm |
| Form | Precision Ground Bar, Flat Bar, Square, Round, Half Round Bar, Rod, Rectangle, Hex (A/F), T-Bar, Channel Bar, Blocks, Round Rod, Threaded, Profiles, Billet, Ingot, I/H Bar, Forging, Rings, Hollow, Triangle etc. |
| Grade | Ni | Cr | Fe | C | Mn | S | Si | Cu |
|---|---|---|---|---|---|---|---|---|
| Inconel 600 | 72.0 min | 14.0 – 17.0 | 6.0 – 10.0 | 0.15 max | 1.0 max | 0.015 max | 0.5 max | 0.5 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
At Fajar Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Inconel 600 Bars in Jakarta, Indonesia, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Indonesia, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Inconel 600 bars are widely used in a variety of high-stress environments because of their excellent resistance to heat and corrosion. For turbine blades and jet engine parts, it is important in the aerospace industry. It is used in heat exchangers, evaporator tubes and furnace components as resistant to oxidizing and reducing conditions in chemical process operations in addition to being used in nuclear reactors, power plants and marine applications. Their versatility and durability make them ideal for any application that requires high-performance materials under harsh conditions.
