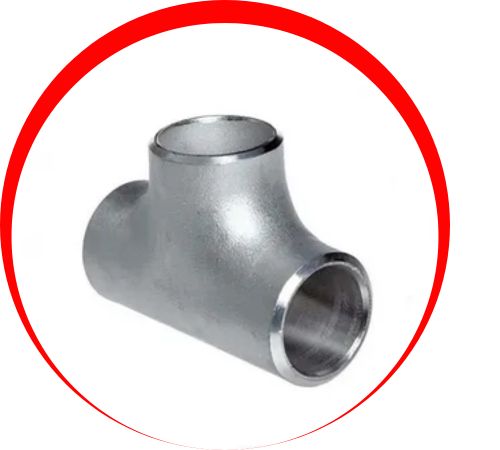

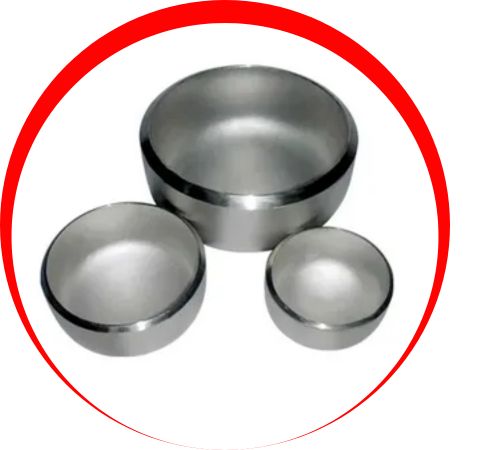

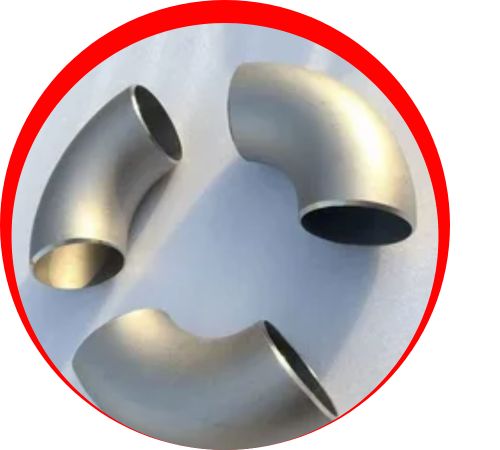

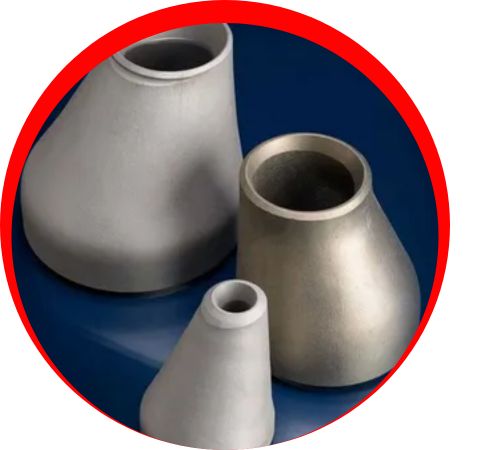

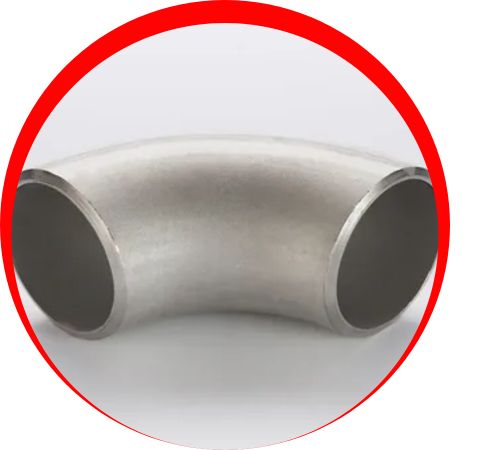

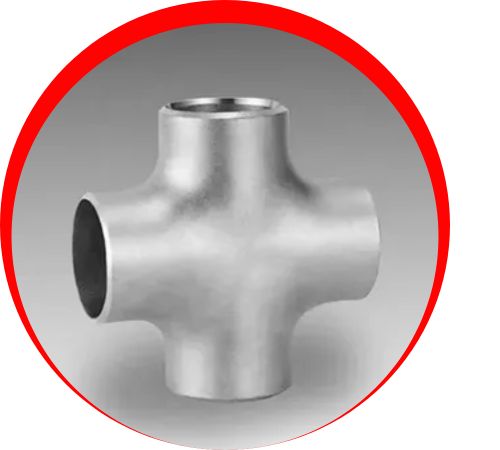

Fajar Metals stands out as a top-notch manufacturer and supplier of premium Incoloy Pipe Fittings, proudly rooted in Jakarta, Indonesia. Our fittings are celebrated for their remarkable resistance to high-temperature oxidation and harsh corrosive environments, making them perfect for long-lasting performance in tough industrial settings. We provide a wide array of pipe fittings, including elbows, tees, reducers, couplings, and caps, available in various Incoloy grades like 800, 825, and 925. Each fitting is crafted to meet international standards (ASTM, ASME) and tailored to fit specific project needs, serving industries such as chemical processing, power generation, marine, and oil & gas.
Incoloy Pipe Fittings are generally crafted from nickel-iron-chromium alloys, including Incoloy 800 (30–35% Ni, 19–23% Cr) and Incoloy 825 (38–46% Ni, 19.5–23.5% Cr, 2.5–3.5% Mo, along with Cu and Ti). These alloys offer outstanding resistance to oxidation, carburization, and stress corrosion cracking caused by chlorides. Their mechanical properties boast tensile strength ranging from 550–850 MPa, yield strength between 200–450 MPa, and elongation of up to 45%. Incoloy maintains its structural integrity even in high-temperature and acidic conditions, making it an excellent choice for fittings used in critical process piping and heat transfer systems.
Specifications : ASTM B366 / ASME SB366
Size : Seamless Inconel / Incoloy Butt Weld Fittings: 1/2″ – 10″
Welded Inconel / Incoloy Butt Weld Fittings: 1/2″ – 48″
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Thickness : SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Types : Seamless / Welded / Fabricated
Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Inconel Pipe Fittings | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 | – | – |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel Pipe Fittings | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
At Fajar Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Incoloy Pipe Fittings in Jakarta, Indonesia, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Indonesia, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Incoloy Pipe Fittings find extensive use in industries that demand robust, corrosion-resistant joints for high-pressure and high-temperature applications. Common uses include chemical processing plants, nuclear and fossil fuel power stations, marine exhaust systems, oil refineries, and heat exchanger systems. These fittings excel at transporting aggressive substances like sulfuric acid, phosphoric acid, seawater, and high-temperature steam. Thanks to Incoloy’s metallurgical stability, they ensure a long service life in extreme conditions, helping to minimize maintenance downtime and enhance system efficiency.
