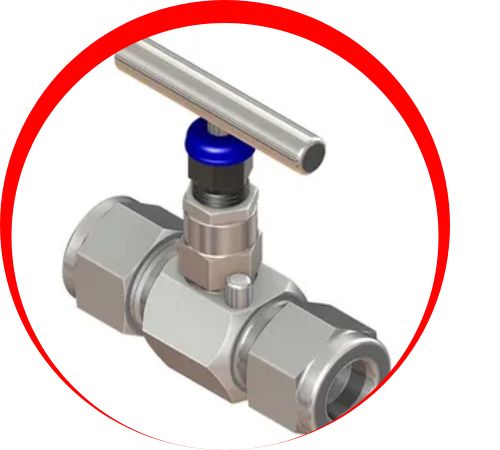

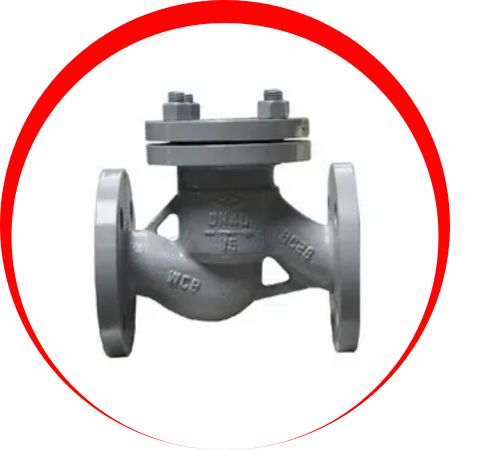

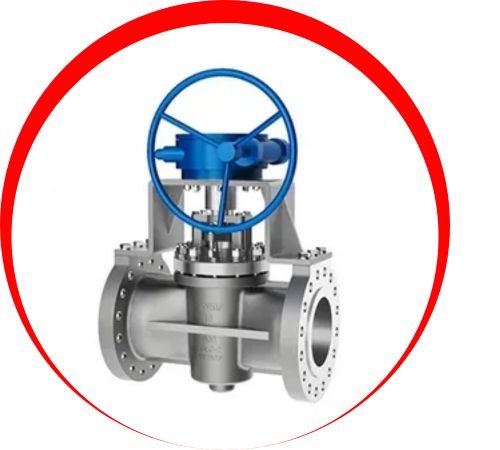

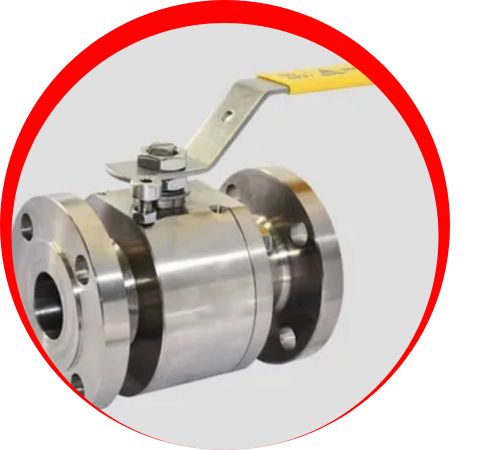

Fajar Metals, a well-respected manufacturer and supplier located in Jakarta, Indonesia, specializes in high-performance Incoloy 800/800H/800HT Valves. These valves are crafted for exceptional durability and resistance, particularly in high-temperature and corrosive environments. Constructed from nickel-iron-chromium alloys enriched with carbon, aluminum, and titanium, they are designed to uphold mechanical strength while resisting oxidation, carburization, and thermal fatigue. With a range of designs including gate, globe, ball, and check valves, they meet industry standards like ASTM B564 and ASME B16.34, making them ideal for critical operations in refineries, power plants, and chemical processing systems.
Incoloy 800/800H/800HT Valves boast a chemical makeup of Nickel (30–35%), Chromium (19–23%), and Iron (the balance), with specific amounts of Aluminum, Titanium, and Carbon varying by variant. These alloys are known for their high-temperature strength and remarkable resistance to oxidation and stress corrosion cracking. Their mechanical properties include a tensile strength of about 500–600 MPa, yield strength exceeding 200 MPa, and elongation up to 45%. The 800H and 800HT versions offer improved creep and rupture resistance, ensuring reliable performance in extended high-temperature applications.
| Material | Incoloy |
|---|---|
| Seal Material | PTFE/ RPTFE |
| Working Pressure | 1.6 – 6.4Mpa |
| Working Temperature | -29°C — +180°C |
| Availabe Size | 1/2″-4″,(DN15-DN100) |
| Available Connection | BSP/ BSPT/ NPT/ Flanged/ Welded |
| Nominal Pressure | P10/PN16 |
| Operation | Manual,Pneumatic, Electric |
| Suitable Medium | Water,Sewage,Seawater,Gas,Food,Oils,etc |
| Standards | GB9112,DIN2501,BS4504,ISO2084,ANSI125 |
| Applications | Water, Oil, Gas, |
| Nominal Diameter | DN40-DN300 handle lever DN350-DN1200 gear box |
| Operation Temperature | -10°C~150°C |
| Grade | Ni | Fe | Cr | Cu | Mn | S | Si | Ti | Al | C |
| Alloys 800 | 30.0-35.0 | 39.5 min | 19.0-23.0 | .75 max | 1.5 max | .015 max | 1.0 max | .15-.60 | .15-.60 | .1 max |
| Alloys 800HT | 30.0-35.0 | 39.5 min | 19.0-23.0 | .75 max | 1.5 max | .015 max | 1.0 max | .25-.60 | .85-1.20 | .06-.10 max |
| Alloys 800H | 30.0-35.0 | 39.5 min | 19.0-23.0 | .75 max | 1.5 max | .015 max | 1.0 max | .15-.60 | .15-.60 | .05-.10 max |
| Density | Yield Strength (0.2%Offset) | Melting Point | Tensile Strength | Elongation |
| 7.94 g/cm3 | Psi – 30,000 , MPa – 205 | 1350-1400 ℃ | Psi – 75,000 , MPa -520 | 30 – 35 % |
At Fajar Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Incoloy 800/800H/800HT Valve in Jakarta, Indonesia, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Indonesia, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Incoloy 800/800H/800HT valve is widely used in high temperature industrial applications. They are ideal for power generation, where steam and other high-temperature liquids are handled. In petrochemical processing, these valves deal with extremely hot and humid environments. Because of its resistance to oxidation and carburizing, it is used in heat exchangers, furnace components and solvents. Their durability and strength under thermal stresses make them suitable for harsh conditions in a variety of industries.
