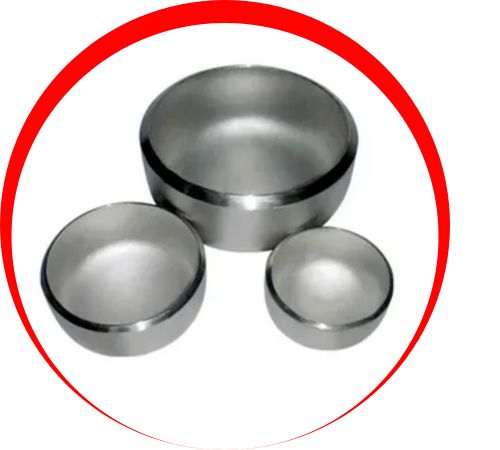

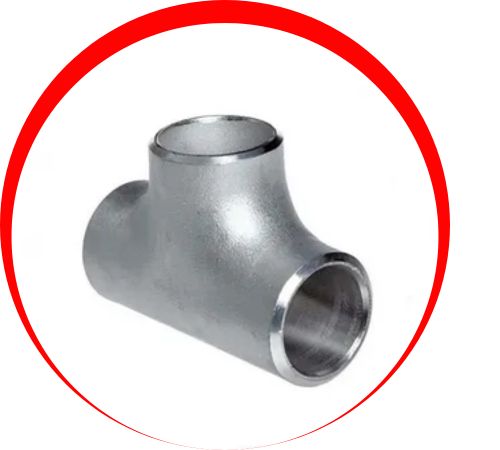

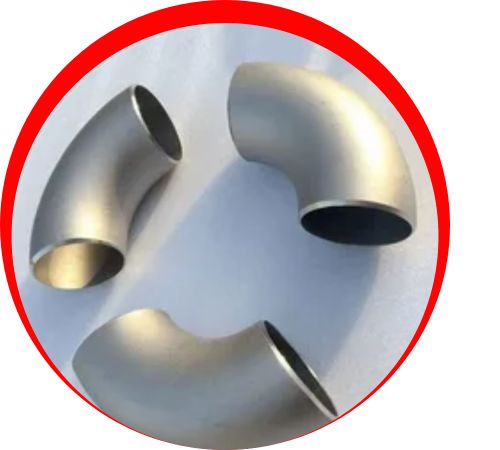

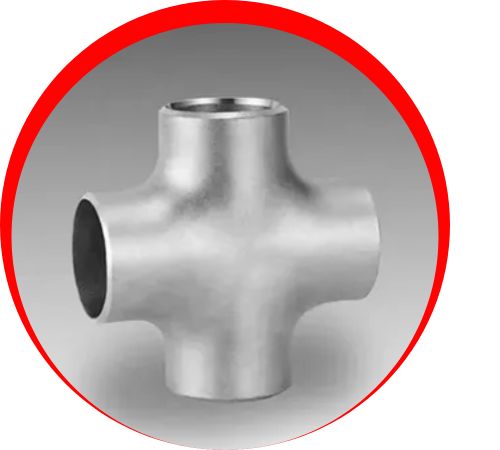

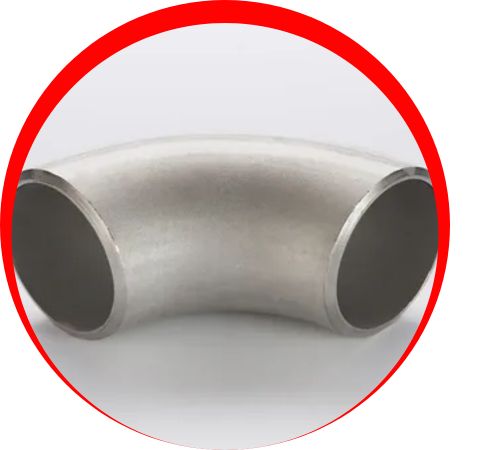

Fajar Metals, a well-respected manufacturer and supplier located in Jakarta, Indonesia, specializes in high-performance Incoloy 800/800H/800HT Pipe Fittings. These fittings are crafted for demanding industrial applications that require outstanding corrosion and heat resistance. Made from nickel-iron-chromium alloys with carefully controlled levels of carbon, aluminum, and titanium, they offer enhanced strength and creep resistance at high temperatures. Available in various forms like elbows, tees, reducers, caps, and crosses, they meet international standards such as ASTM B366. Ideal for chemical plants, power stations, refineries, and heat treatment equipment, these fittings guarantee durable, leak-proof connections even in tough operating conditions.
Incoloy 800/800H/800HT Pipe Fittings boast a chemical makeup that includes Nickel (30–35%), Chromium (19–23%), Iron (the balance), along with trace amounts of Aluminum (0.15–0.60%), Titanium (0.15–0.60%), and Carbon (up to 0.10%). These fittings deliver impressive mechanical properties, featuring a tensile strength of 500–600 MPa, yield strength exceeding 200 MPa, and elongation of up to 45%. The 800H and 800HT variants are specifically designed for enhanced creep-rupture strength. This material remains highly stable and resistant to oxidation, carburization, and chloride stress corrosion cracking at temperatures reaching up to 1100°C.
Specifications : ASTM B366 / ASME SB366
Size : Seamless Inconel / Incoloy Butt Weld Fittings: 1/2″ – 10″
Welded Inconel / Incoloy Butt Weld Fittings: 1/2″ – 48″
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Thickness : SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Types : Seamless / Welded / Fabricated
Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Inconel Pipe Fittings | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 | – | – |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel Pipe Fittings | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
At Fajar Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Incoloy 800/800H/800HT Pipe Fittings in Jakarta, Indonesia, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Indonesia, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Incoloy 800/800H/800HT Pipe Fittings are used in high-temperature and corrosive applications. They are ideal for power generation facilities, including steam lines and heat exchangers, where they withstand extreme heat. In chemical processing, they handle corrosive substances and high-pressure environments. These fittings are also employed in industrial furnaces and aerospace applications, providing durability and reliability under thermal stress. Their excellent resistance to oxidation and carburization makes them suitable for challenging industrial settings.
