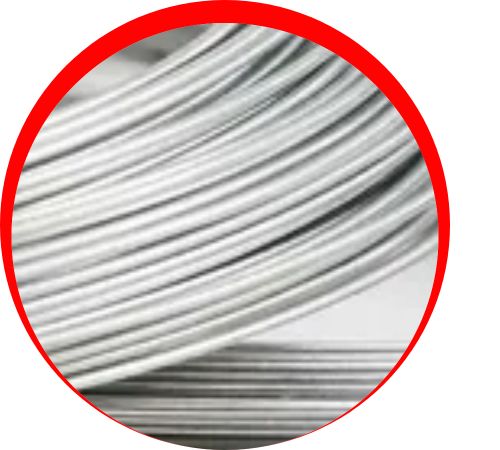

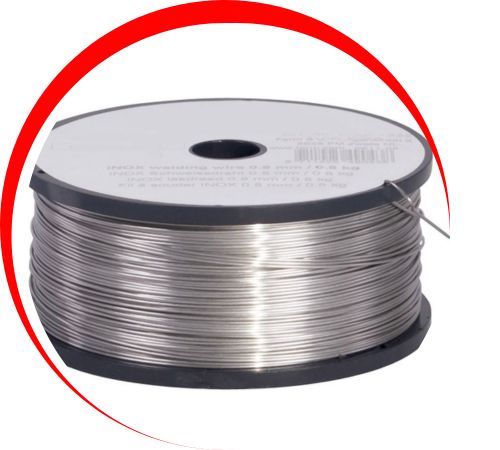

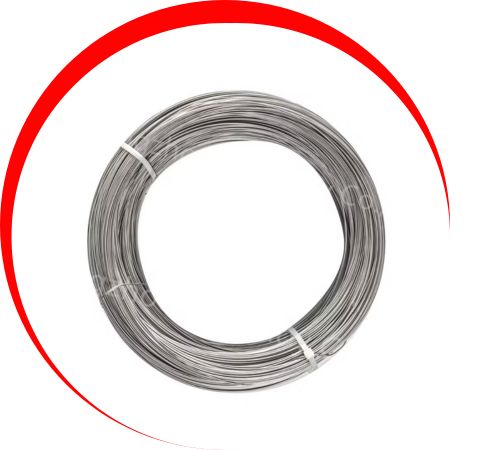

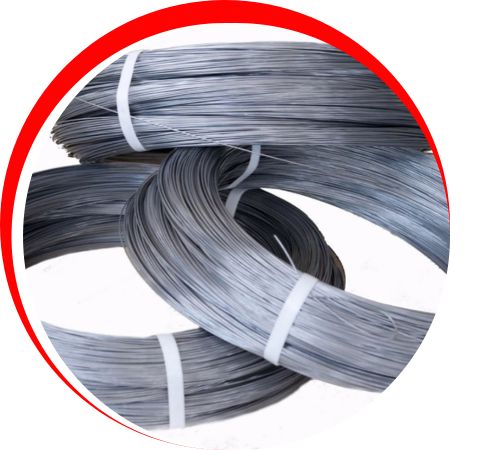

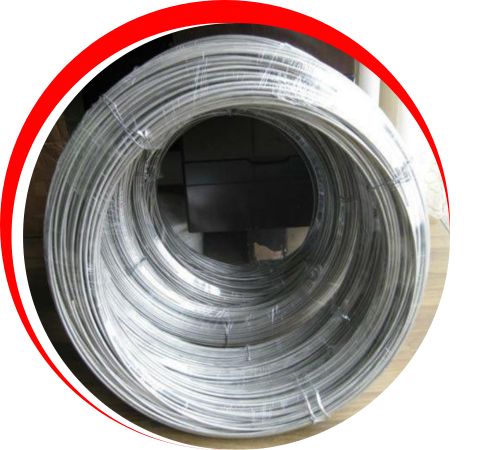

Hastelloy W Wire is crafted from a nickel-based alloy that features a well-balanced mix of molybdenum, chromium, cobalt, and iron, ensuring remarkable stability during welding and outstanding resistance to cracking in the heat-affected zone. This alloy maintains consistent mechanical properties even at elevated temperatures and is specifically designed for joining dissimilar metals. Typically, it shows tensile strength ranging from 620 to 750 MPa and yield strength between 260 to 320 MPa, along with good elongation and ductility. Fajar Metals guarantees chemical consistency and high structural integrity in every spool of wire, adhering to stringent aerospace and nuclear industry standards.
| Standards : | AMS 5755, AMS 5786, AWS A5.14 & ASME SFA 5.14 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |
| Round bar size : | Diameter: 3-~800mm |
| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |
| Square bar size : | 4 to 100mm |
| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P | Cu |
| 0.12 | 1.0 | 1.0 | 0.03 | ≤2.5 | – | 4.0-6.0 | 4.00 – 7.00 | 23-26 | 0.04 | ≤0.5 |
| Yield strength (MPa) | Tensile strength(MPa) | Impact test | Elongation (%) | Reduction in cross section on fracture (%) | As-Heat-Treated Condition | Brinell hardness (HBW) |
|---|---|---|---|---|---|---|
| 765 (≥) | 352 (≥) | 31 | 24 | 23 | Solution and Aging, Annealing, Ausaging, Q+T,etc | 214 |
At Fajar Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Hastelloy W Wire in Jakarta, Indonesia, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Indonesia, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Hastelloy W wire is primarily used in applications requiring high-temperature environmental resistance and excellent corrosion properties. Common applications are welding filler materials for alloys in the chemical industry, aerospace, and power construction. It is particularly effective in harsh environments, such as welding materials such as reactor cores and gas turbines, due to its outstanding resistance to oxidation, sulfidation and corrosion Hastelloy W wire is also used in high performance alloy parts in petrochemical, nuclear and marine industries.
