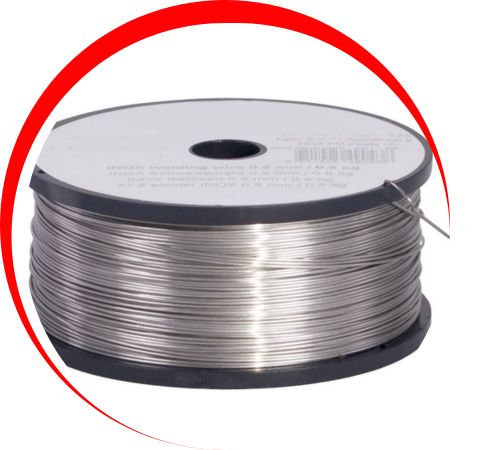

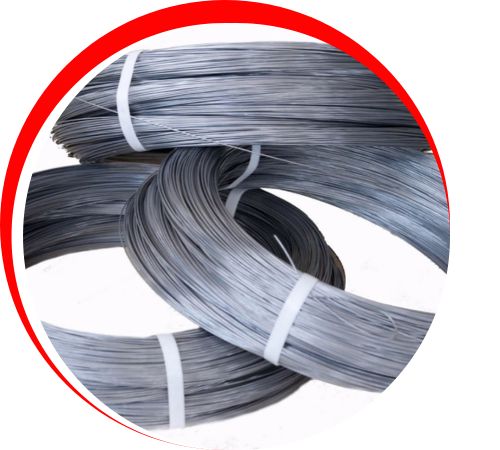

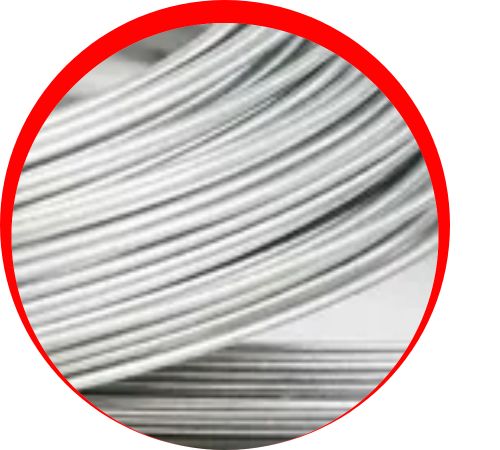

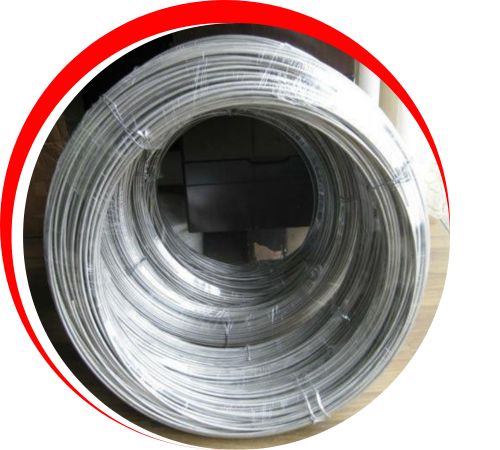

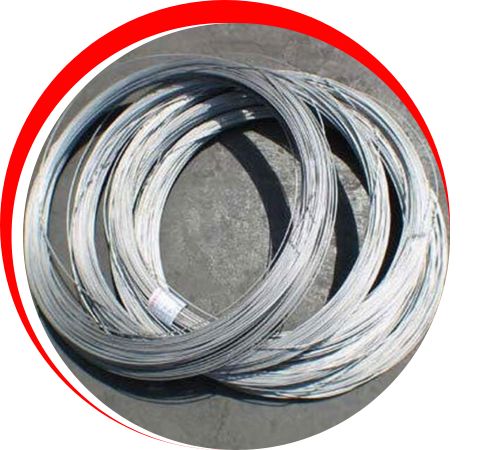

Fajar Metals takes pride in offering top-notch Hastelloy N Wire, sourced and produced right in Jakarta, Indonesia. Our Hastelloy N Wire is made from a nickel-based alloy that’s specifically designed to provide outstanding corrosion resistance and thermal stability, even in the harshest environments. Renowned for its remarkable ability to withstand molten and fluoride salts, this wire finds its place in industries like nuclear energy, chemical processing, and aerospace. With a variety of diameters and lengths available, our wire adheres to international standards, making it perfect for welding, fabrication, and precision engineering projects. At Fajar Metals, we guarantee consistent quality, durability, and performance for all your demanding needs.
Hastelloy N Wire is primarily made up of about 71% Nickel, 16% Molybdenum, and 5% Iron, along with trace amounts of Chromium, Silicon, and Manganese. This unique blend gives it exceptional resistance to corrosion from molten and fluoride salts, as well as oxidation at elevated temperatures. Typical mechanical properties include a tensile strength ranging from 690 to 760 MPa, yield strength between 275 and 310 MPa, and an elongation of up to 40%. The wire maintains its shape and mechanical integrity even under thermal cycling and radiation exposure, making it a perfect fit for nuclear and high-temperature chemical applications.
| Standards : | ASTM B573, ASME SB573 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |
| Round bar size : | Diameter: 3-~800mm |
| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |
| Square bar size : | 4 to 100mm |
| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Grade | C | Mn | Si | Cu | Ni | Cr | Mo | W | Fe |
| Hastelloy N | 0.06 max | 0.8 max | 1.00 max | ≤ 0.35 | 71 Balance | 6.0 – 8.0 | 15.0 – 18.0 | ≤ 0.50 | ≤ 5 |
| Tensile Strength | Modulus of elasticity (@14°C) | Elongation |
| Psi – 800 , MPa –116000 | Psi – 219 , Ksi – 31800 | 39.3 % |
At Fajar Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Hastelloy N Wire in Jakarta, Indonesia, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Indonesia, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Hastelloy N Wire is mainly found in nuclear reactor components, particularly in molten salt reactors, thanks to its impressive resistance to fluoride salt corrosion and thermal stability. It’s also used in chemical processing equipment, aerospace parts, and high-temperature furnace components that demand exceptional durability and corrosion resistance. This wire is perfect for welding and fabricating critical components that face extreme chemical and thermal conditions. Its unique characteristics ensure longevity and safety in next-generation energy systems and other specialized industrial applications.
