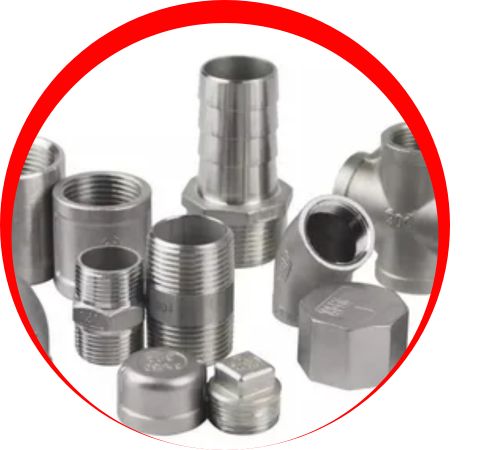

Fajar Metals, a leading manufacturer and supplier located in Jakarta, Indonesia, specializes in high-quality Hastelloy C22 Forged Fittings that are built to withstand some of the toughest environments. These fittings are crafted to ensure secure, leak-proof connections in piping systems that face highly corrosive chemicals, intense pressures, and extreme temperatures. Commonly found in sectors like chemical processing, pharmaceuticals, marine, and pollution control, Fajar Metals’ Hastelloy C22 Forged Fittings come in various shapes, including elbows, tees, couplings, unions, and plugs. Each product meets international standards, guaranteeing exceptional strength, durability, and a long lifespan.
| Standard | ASTM B564 / ASME SB564 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Hastelloy C22 | Ni | C | Mo | Mn | Si | Fe | P | S | Co | Cr | W | V |
| Balance | 0.010 max | 12.5 – 14.5 | 0.50 max | 0.08 max | 2 – 6 | 0.02 max | 0.02 max | 2.5 max | 20 – 22.5 | 2.5 – 3.5 | 0.35 max |
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 45000 , MPa – 310 | Psi – 1,00,000 , MPa – 690 | 45 % |
At Fajar Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Hastelloy C22 Forged Fittings in Jakarta, Indonesia, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Indonesia, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Hastelloy C22 forged fittings are widely used in chemical processing, marine engineering, and aerospace industries due to their superior corrosion resistance and durability. They excel in handling harsh chemicals, including acids and chlorides, making them ideal for chemical reactors, heat exchangers, and piping systems. Additionally, their high-temperature stability makes them suitable for aerospace components and industrial equipment exposed to extreme conditions. These fittings are crucial for maintaining performance and reliability in demanding applications.
