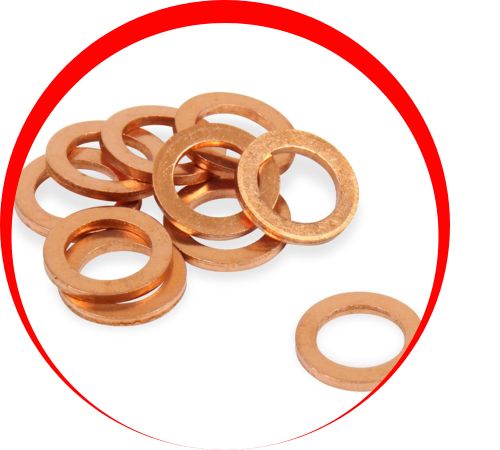

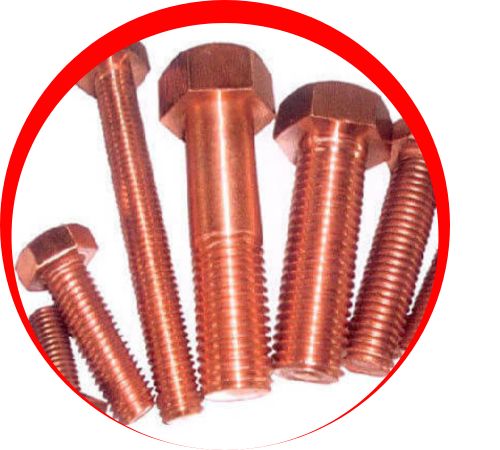

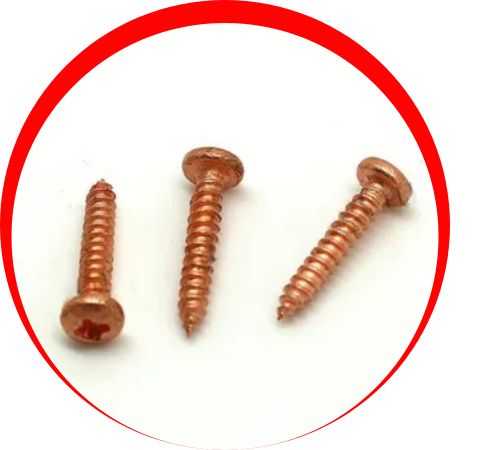

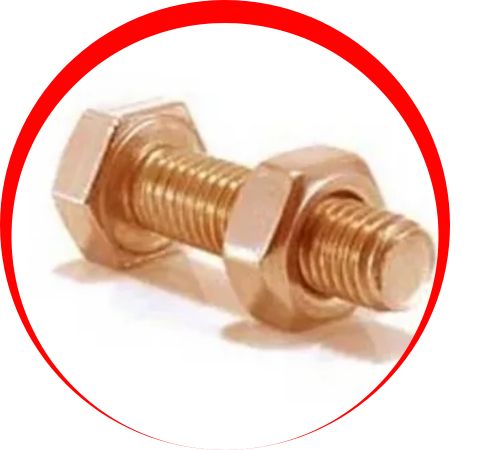

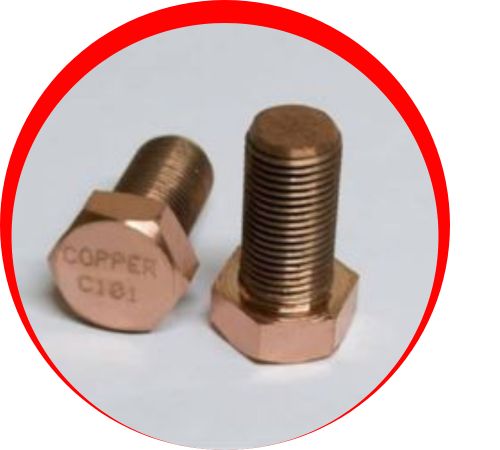

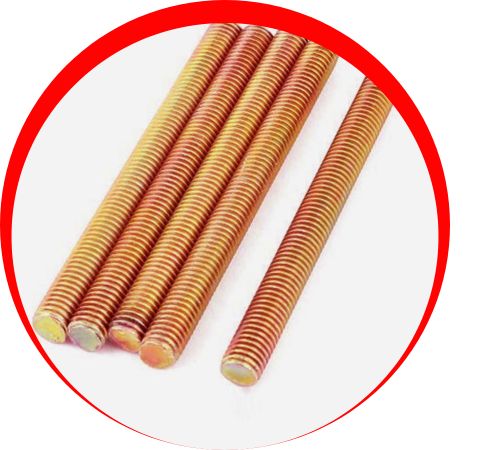

Fajar Metals, a reputable manufacturer and supplier located in Jakarta, Indonesia, specializes in high-quality Copper Nickel Fasteners that are perfect for challenging environments like marine, offshore, and industrial systems. Offered in both Cu-Ni 90/10 and 70/30 grades, these fasteners are crafted to provide exceptional resistance against seawater, biofouling, and erosion. Fajar Metals has a comprehensive selection of fasteners, including bolts, nuts, screws, washers, and studs, all produced in accordance with international standards such as ASTM, DIN, and ISO. These dependable and robust fasteners guarantee strong, secure connections in critical applications across various industries.
Copper Nickel Fasteners are made up of Copper (Cu) and Nickel (Ni) in either 90/10 (Cu-90%, Ni-10%) or 70/30 (Cu-70%, Ni-30%) ratios, with small amounts of Iron (Fe) and Manganese (Mn) included to boost strength and corrosion resistance. These fasteners deliver a tensile strength ranging from 350 to 450 MPa, a yield strength of 150 to 200 MPa, and impressive ductility. Their ability to resist chloride-induced corrosion, stress cracking, and thermal fatigue makes them perfect for high-pressure, high-temperature, and saltwater environments, all while ensuring excellent machinability and weldability.
| Grade | Cupro Nickel |
| Specifications | ASTM / ASME SB 151, SB 152 |
| Standards | DIN, ASTM, BS and all International Standards |
| Length | UPTO 5 METERS |
| Size | M4 To M100 | Custom Sizes |
| Form | Nuts, Bolts, Washers, Screw |
| Types | Hex Bolts, Flange Bolts, Hex Head Bolts, Lag Bolts, Square Bolts, Eye Bolts, U Bolts, T Bolts, Counter sunk Bolts, Hex Head Nut, Eye Nut, Dome Nut, Coupling Nut, Square Nut, Acorn Nut, Hex Head Cap Screws, Socket Set Screws, Anchor Screws, Socket Head Screws, Concrete Screws, Shoulder Screws, Threaded Screws, Machine Screws, Machine Washers, Flat Washer, Star Washers, Sealing Washer, Lock Washer etc. |
| Grade | Cu | Mn | Pb | Ni | Fe | Zn |
|---|---|---|---|---|---|---|
| Copper Nickel | 65.0 min | 1 max | .05 max | 29-33 | 0.4-1.0 | 1 max |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength, ultimate | 372-517 MPa | 54000-75000 psi |
| Tensile strength, yield (depending on temper) | 88.0-483 MPa | 12800-70100 psi |
| Elongation at break (in 381 mm) | 45.0% | 45.0% |
| Charpy impact | 107 J | 78.9 ft-lb |
| Machinability (UNS C36000 (free-cutting brass) = 100%) | 20% | 20% |
| Shear modulus | 57.0 GPa | 8270 ksi |
| Poisson’s ratio | 0.34 | 0.34 |
| Elastic modulus | 150 GPa | 21800 ksi |
At Fajar Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Copper Nickel Fasteners in Jakarta, Indonesia, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Indonesia, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Copper nickel fasteners is widely used in the marine, offshore and shipbuilding industries due to its excellent resistance to seawater corrosion. These fasteners are essential in the hulls, heat exchangers, piping systems and desalination plants that prolonged exposure to salt water and aggressive environments requires effective use of copper nickel packaging Subsequently, applications of copper nickel packaging in power generation, oil and gas and chemical industries where available are in demand. Provide high strength and durability under conditions Their ability to withstand biofouling, erosion and high temperatures makes them ideal for construction and mechanical applications in harsh environments.
