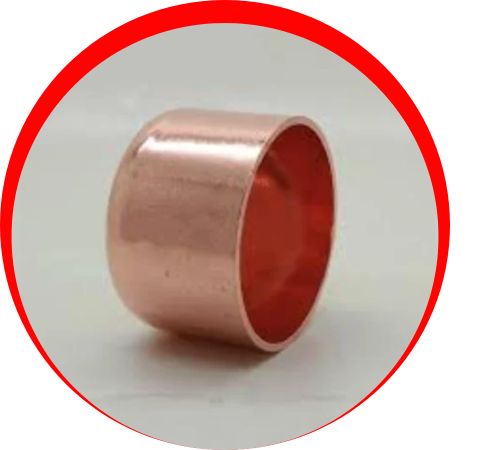

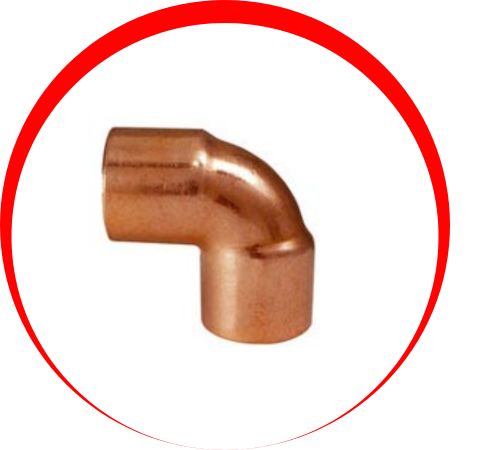

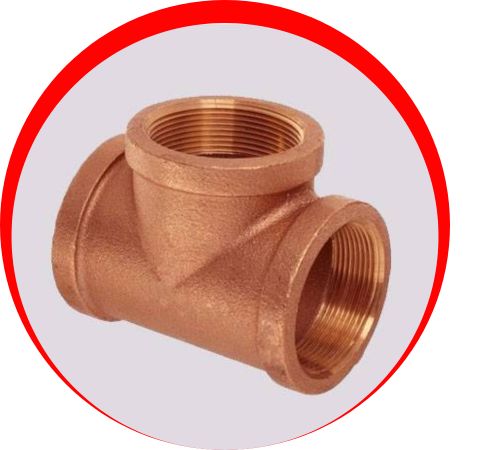

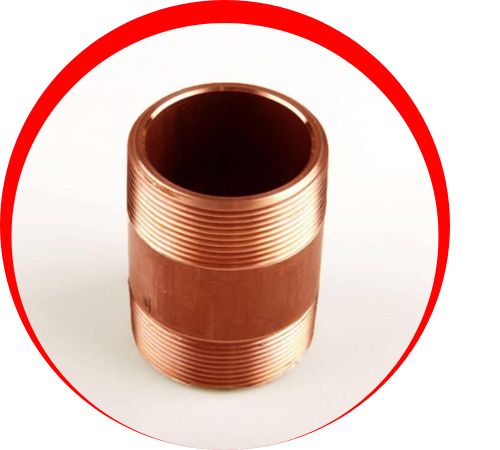

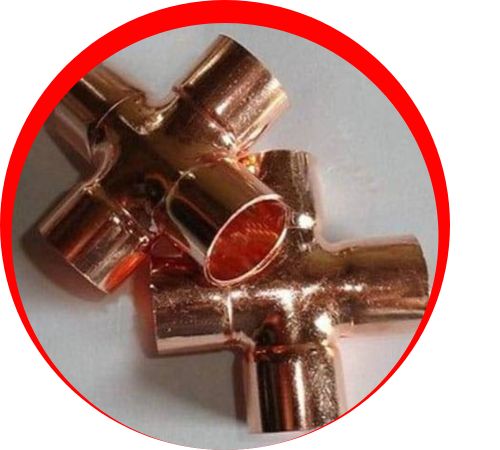

Fajar Metals, a reputable name in Jakarta, Indonesia, stands out as a top manufacturer and supplier of Copper Nickel 90/10 Forged Fittings, built for durability in marine, offshore, and industrial applications. These fittings are made from a premium Cu-Ni 90/10 alloy (90% Copper, 10% Nickel) and meet international standards like ASTM B467, ASME B16.11, and MSS-SP-79/83. With options such as elbows, tees, couplings, unions, and bushings, they excel in high-pressure, corrosion-heavy environments. Fajar Metals guarantees precision forging and machining, ensuring leak-proof, corrosion-resistant connections for seawater and chemical processing systems.
Copper Nickel 90/10 Forged Fittings are composed of 90% Copper and 10% Nickel, along with small amounts of Iron and Manganese to boost strength and corrosion resistance. These fittings typically deliver a tensile strength ranging from 275 to 370 MPa, a yield strength of 105 to 150 MPa, and impressive ductility and thermal conductivity. The forged design ensures exceptional pressure resistance and mechanical integrity. Their remarkable ability to resist seawater corrosion, biofouling, and stress corrosion cracking makes them perfect for demanding marine and industrial settings where reliable performance is essential.
Cupro Nickel Forged Fittings Specification : ASTM B467 / ASME SB467
Dimension Standard : ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799
Size : 1/8″ NB to 4″ NB
Type : Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)
Rating Pressure : Threaded End – 2000 /3000/ 6000 LBS. Socket-weld End – 3000 / 6000/ 9000 LBS.
| Grade | Cu | Mn | Pb | Ni | Fe | Zn |
|---|---|---|---|---|---|---|
| Cupro Nickel 90/10 | 88.6 | 1.0 max | 0.05 max | 9 – 11 max | 1.8 max | 1 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 0.323 lb/in3 at 68 F | 2260 F | 50000 psi | 20000 psi | 30 % |
At Fajar Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Copper Nickel 90/10 Forged Fittings in Jakarta, Indonesia, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Indonesia, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Copper nickel 90/10 forged fittings are widely used in the marine and industrial industries due to their high resistance to marine corrosion. It is commonly used in shipbuilding for marine piping systems, condensers, heat exchangers and pipelines. In addition, these materials are used in offshore oil and gas plants, desalination plants and power plants. Its resistance to high temperatures and pressures makes it particularly suitable for use in the chemical industry, fire suppression, and other areas where durability and corrosion resistance are required.
