Home > Copper Nickel > Copper Nickel 90/10 Coil

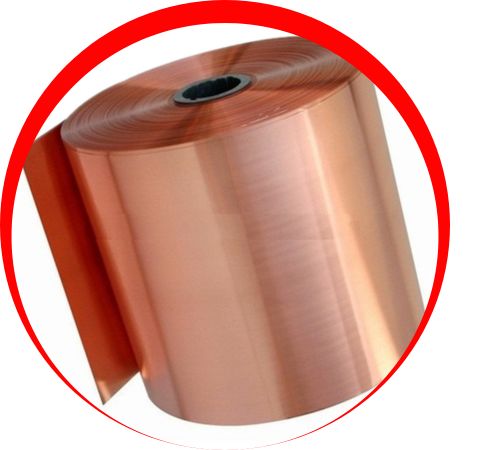

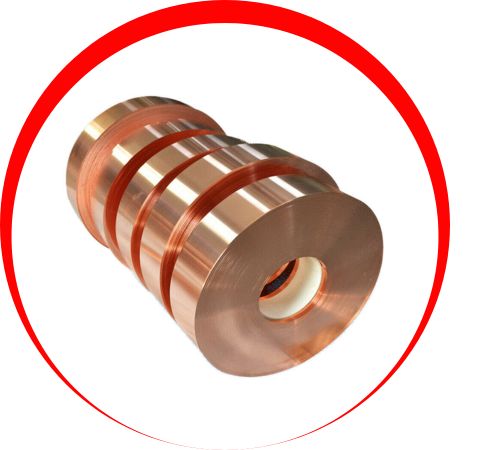

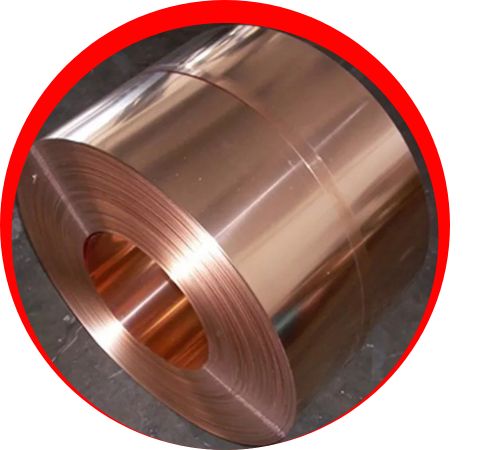

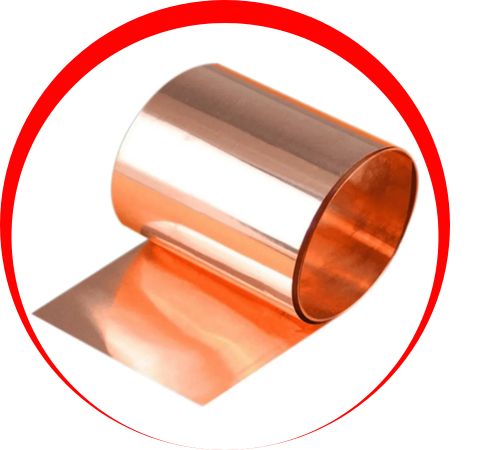

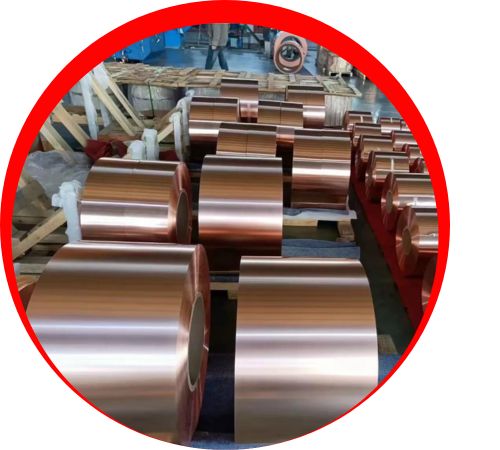

Fajar Metals, a well-respected manufacturer and supplier located in Jakarta, Indonesia, specializes in top-notch Copper Nickel 90/10 Coils that are built to last and resist corrosion in marine, industrial, and chemical settings. Crafted from an alloy of 90% copper and 10% nickel, these coils are prized for their exceptional resistance to seawater corrosion, biofouling, and high-temperature oxidation. Offered in a variety of widths, thicknesses, and tempers, Fajar Metals ensures that their Cu-Ni 90/10 coils meet international standards like ASTM B122 and B171. These coils are perfect for creating heat exchangers, condensers, and tubing for tough applications.
The Copper Nickel 90/10 Coil consists of 90% Copper (Cu) and 10% Nickel (Ni), along with trace amounts of Iron (Fe) and Manganese (Mn) to enhance strength and corrosion resistance. This material boasts a tensile strength ranging from 275 to 350 MPa, a yield strength of 105 to 150 MPa, and excellent ductility and weldability. These coils are particularly resistant to chloride-induced corrosion, biofouling, and stress cracking, making them a great choice for marine and industrial uses. Their impressive thermal conductivity, formability, and soldering compatibility also make them ideal for high-performance heat exchange and fluid handling systems.
| Grades | Cu-Ni 90/10, Cu-Ni 70/30 |
| Thickness | 0.1mmThk To 3 mm Thk |
| Width | 3.2mm To 1500mm |
| Length | AS PER CUSTOMER’S REQUIREMENT |
| Type of Material | Cupro Nickel SOFT, DEEP DRAW, EXTRA DEEP DRAW, QUARTER HARD, HALF HARD, FULL HARD. |
| Form | Coil / Strip |
| Test Certificate | Yes. |
| Finish | NO.1, 2B, 2D, 2H, 2R, No.4, HAIRLINE, SCOTCH BRITE, SATIN FINISH, NO.8, BA. |
| Grade | Cu | Mn | Pb | Ni | Fe | Zn |
| Cu-Ni 90-10 | 88.6 min | 1.0 max | .05 max | 9-11 max | 1.8 max | 1 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Copper Nickel 90-10 | 0.323 lb/in3 at 68 F | 2260 F | 50000 psi | 20000 psi | 30 % |
At Fajar Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Copper Nickel 90/10 Coil in Jakarta, Indonesia, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Indonesia, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Copper nickel 90/10 coils are widely used in marine and offshore applications due to their exceptional resistance to sea corrosion. Typical applications include heat exchangers, condenser tubes and marine piping systems. It is also used in shipbuilding for a variety of components and fittings and in desalination plants due to its durability and resistance to biofouling The excellent thermoelectric conductivity of the alloy makes it suitable for applications requiring heating transfers smoothly and performs reliably in challenging environments.
