Fajar Metals, a well-respected manufacturer and supplier located in Jakarta, Indonesia, specializes in high-quality Copper Nickel 90/10 Bars. These bars are celebrated for their outstanding resistance to seawater corrosion, biofouling, and stress corrosion cracking. Made up of 90% copper and 10% nickel, they find extensive use in marine, chemical, and desalination industries. Fajar Metals provides these bars in a variety of shapes and sizes to cater to different industrial needs, ensuring top-notch quality and compliance with international standards. With a strong focus on performance and durability, Fajar Metals is dedicated to supporting customers both in Indonesia and internationally with dependable supply and expert technical advice.
Copper Nickel 90/10 Bars are composed of around 90% Copper (Cu) and 10% Nickel (Ni), with minor additions of Iron (Fe) and Manganese (Mn) to boost strength and corrosion resistance. This alloy is known for its remarkable resistance to seawater, brine, and marine atmospheric conditions. Typically, the mechanical properties include a tensile strength ranging from 275 to 350 MPa, a yield strength of 100 to 150 MPa, and impressive ductility with good elongation. These bars maintain their strength and integrity even under varying temperatures, pressure, and saline exposure, making them perfect for precision machining and challenging industrial settings.
| Dimensions | DIN, EN, ASTM, JIS, ASME, BS, AISI |
|---|---|

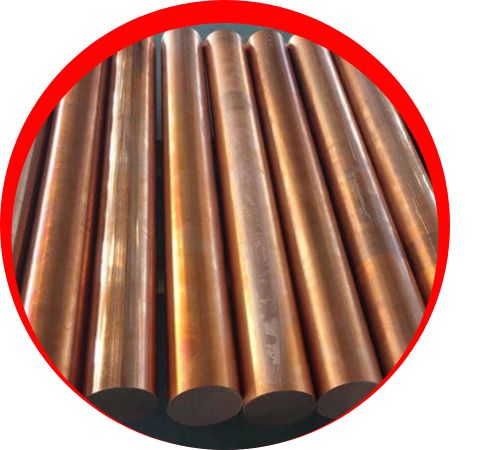

| Round bar size | Diameter: 3-~800mm |

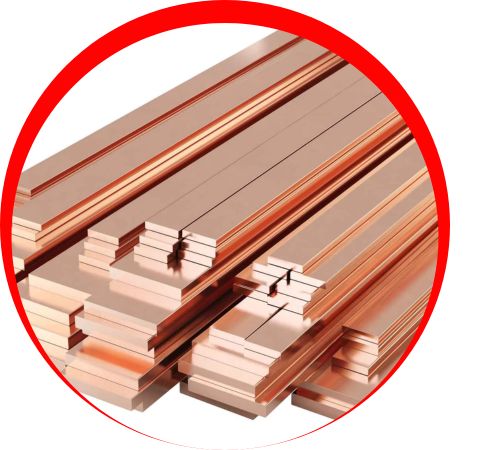

| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |

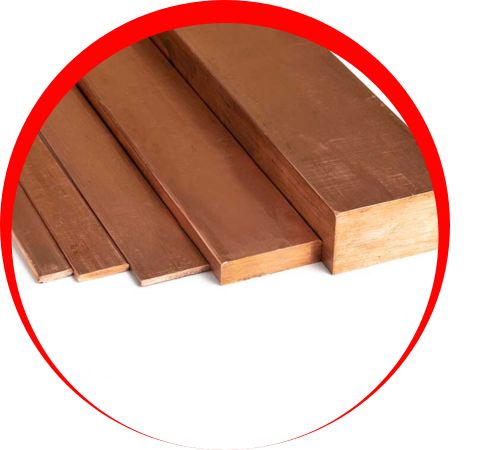

| Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Billet Size | 1/2 to 495mm Diameter |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |

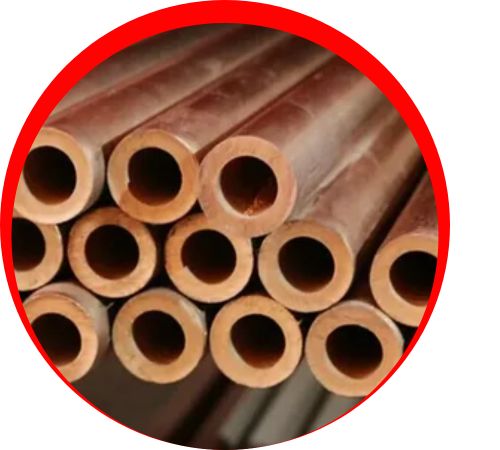

| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Dimensions | Diameter / Height: |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Surface | Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished |
| Condition | Hardened & tempered, annealed |
| Technique | Stainless Steel Cold Drawn, Hot Rolled, Forged Round Bar,Cold Rolled, Rod |
| Processing | Bar cutting to 650mm |
| Form | Rod, Round, Channel Bar, T-Bar, Flat Bar, Precision Ground Bar, Blocks, Square, Rings, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round Bar, Ingot, Billet, I/H Bar, Forging etc. |
| Grade | Element | |||||||
|---|---|---|---|---|---|---|---|---|
| Cu | 88.7 | |||||||
| Fe | 1.3 | |||||||
| Ni | 10.0 | |||||||
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength, ultimate | 303-414 MPa | 43900-60000 psi |
| Tensile strength, yield (depending on temper) | 110-393 MPa | 16000-57000 psi |
| Elongation at break (in 254 mm) | 42.00% | 42.00% |
| Machinability (UNS C36000 (free-cutting brass) = 100%) | 20% | 20% |
| Shear modulus | 52.0 GPa | 7540 ksi |
| Poisson’s ratio | 0.34 | 0.34 |
| Elastic modulus | 140 GPa | 20300 ksi |
At Fajar Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Copper Nickel 90/10 Bars in Jakarta, Indonesia, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Indonesia, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Copper nickel 90/10 bars are widely used in the marine and industrial industries due to their excellent corrosion resistance in seawater and salty environments They are commonly used in hulls, marine pipeline systems and installations salt is removed. In addition, these lines are used in heat exchangers, steam pipelines and offshore oil and gas. Their high thermal conductivity and resistance to biofouling make them ideal for cooling systems and other applications needed as efficient and durable heat transfer agents
