Home > Copper Nickel > Copper Nickel 70/30 Tube Fittings

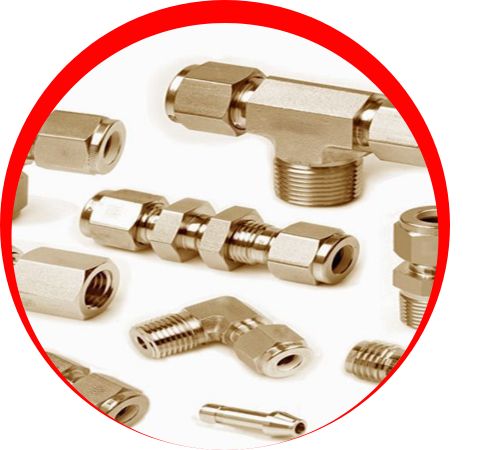

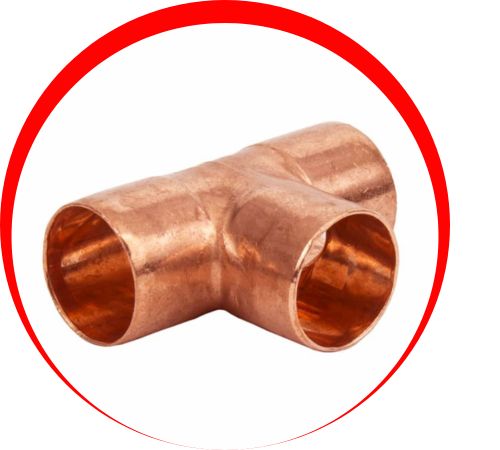

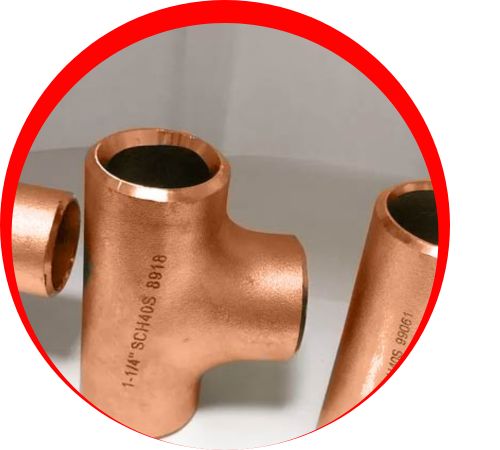

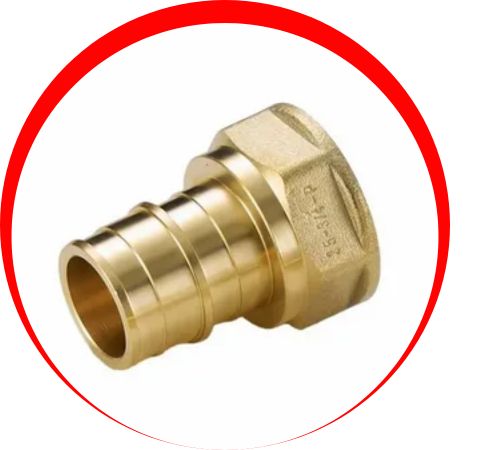

Fajar Metals, a trusted manufacturer and supplier located in Jakarta, Indonesia, specializes in high-quality Copper Nickel 70/30 Tube Fittings that are built to thrive in harsh, corrosive marine environments. Made up of 70% copper and 30% nickel, these fittings offer outstanding resistance to seawater corrosion, erosion, and biofouling, making them perfect for saltwater applications. Fajar Metals provides a comprehensive selection of 70/30 Cu-Ni tube fittings, including elbows, tees, reducers, and unions, all meticulously crafted to meet international quality standards. With reliable quality, competitive pricing, and prompt delivery, Fajar Metals caters to a wide array of industries both locally and globally.
Copper Nickel 70/30 Tube Fittings consist of about 70% Copper (Cu) and 30% Nickel (Ni), with minor additions of Iron (Fe) and Manganese (Mn) to enhance mechanical strength and corrosion resistance. These fittings are known for their remarkable durability in high-velocity seawater and brine, as well as their excellent thermal stability. Typical mechanical properties include a tensile strength ranging from 350 to 450 MPa, yield strength between 150 and 200 MPa, and good elongation and ductility. The alloy’s resistance to pitting, crevice corrosion, and stress corrosion cracking guarantees long-lasting performance in challenging operating conditions.
Specification : ASTM B366 / ASME SB366
Tube Size : 1/16”OD to 2”OD, 2mm OD to 50mm OD
Thread : NPT, BSP, BSPT, UNF, ISO, SAE etc.
Pressure Rating : 6000PSI for Nickel Alloys, 300/1000/3000PSI for Brass
Applicable Temperature : 150-400°C
Origin : Indian Origin, European Origin, Japanese Origin
Testing and Documents : Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, Destructive Test Report, Non Destructive Test Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports
Packing : Packed in Wooden Boxes, Bubble wraps, Steel Strips Bundled, or as per Customers Requests
| Grade | Cu | Mn | Pb | Ni | Fe | Zn |
| Cu-Ni 70/30 | 65.0 min | 1.0 max | .05 max | 29-33 | 0.4-1.0 | 1 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Cu-Ni 70/30 | 0.323 lb/in3 at 68 F | 2260 F | 50000 psi | 20000 psi | 30 % |
At Fajar Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Copper Nickel 70/30 Tube Fittings in Jakarta, Indonesia, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Indonesia, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Copper nickel 70/30 tube fittings are widely used in marine and offshore applications due to their resistance to unusual seawater corrosion and biofouling Important in marine water production for marine water pipes, cooling systems, heat exchangers and desalination water. In addition, these materials are used in power plants, especially in water coolers and condensers. Its durability and reliability also make it suitable for offshore oil and gas operations, where it contributes to long maintenance-free operations in harsh and salty environments Versatile applications ensures that they operate under harsh conditions.
