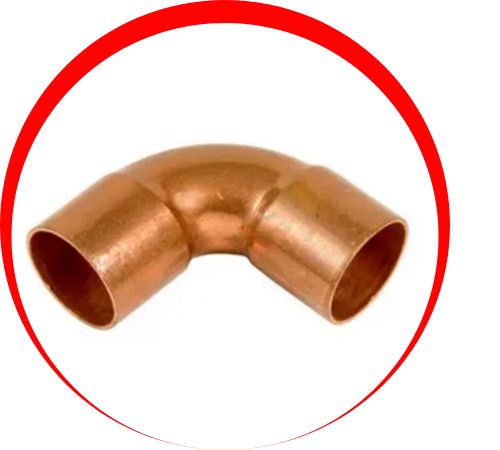

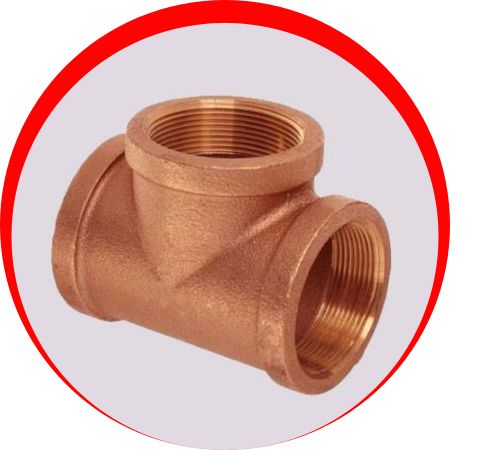

Fajar Metals, a top-notch manufacturer and supplier located in Jakarta, Indonesia, specializes in high-quality Copper Nickel 70/30 Forged Fittings that are built to perform exceptionally in marine, chemical, and industrial settings. Made up of 70% copper and 30% nickel, these fittings boast impressive corrosion resistance, especially in seawater and brine conditions. Fajar Metals offers a diverse selection of forged fittings, including elbows, tees, couplings, unions, and reducers, all crafted to meet international standards like ASTM B151, B467, and ASME B16.11. Renowned for their strength, durability, and thermal stability, Cu-Ni 70/30 forged fittings guarantee secure, leak-proof connections in demanding systems.
Copper Nickel 70/30 Forged Fittings consist of 70% Copper (Cu) and 30% Nickel (Ni), with small amounts of Iron (Fe) and Manganese (Mn) added to boost mechanical strength and corrosion resistance. These fittings showcase a tensile strength between 320–420 MPa and a yield strength of 120–180 MPa, making them perfect for high-pressure situations. They effectively resist stress corrosion cracking, pitting, and biofouling, particularly in salt-rich and high-flow environments. Cu-Ni 70/30 also maintains excellent thermal conductivity, weldability, and fabrication characteristics, ensuring a long service life in systems that encounter marine or chemically aggressive fluids.
| Specifications | : | ASTM B122, B171, B466, B467 |
| Size | : | 1/8” NB to 4” NB (Threaded Forged & Screwed-Forged) |
| Standards | : | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Class | : | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Type | : | Forged Fittings |
| Grade | Cu | Mn | Pb | Ni | Fe | Zn |
| Cupro Nickel 70/30 | 65 min | 1.0 max | 0.05 max | 29-33 max | 0.4-1.0 max | 1 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 0.323 lb/in3 at 68 F | 2260 F | 50000 psi | 20000 psi | 30 % |
At Fajar Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Copper Nickel 70/30 Forged Fittings in Jakarta, Indonesia, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Indonesia, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Copper Nickel 70/30 Forged Fittings are extensively used in marine and offshore industries due to their outstanding resistance to seawater corrosion and biofouling. They are crucial for applications such as seawater cooling systems, heat exchangers, and condenser tubes. These fittings are also widely utilized in shipbuilding for piping systems, valves, and flanges, ensuring reliable performance in harsh environments. Additionally, they are employed in desalination plants, power generation, and chemical processing industries, where their durability and resistance to stress corrosion cracking are essential for maintaining operational efficiency and long-term reliability.
