Home > Copper Nickel > Copper Nickel 70/30 Fittings

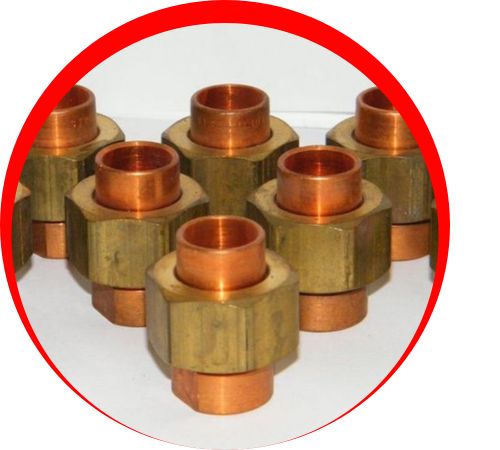

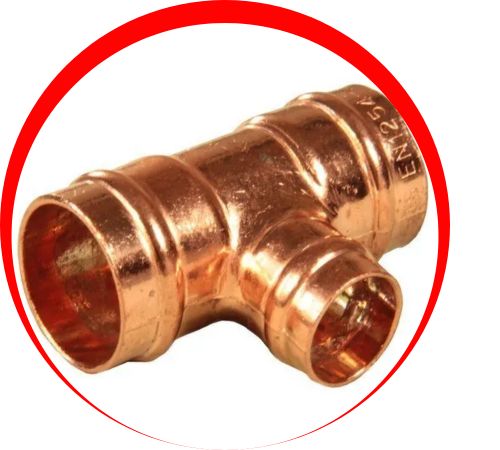

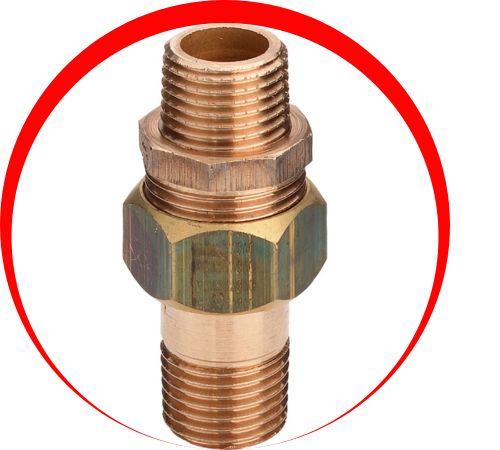

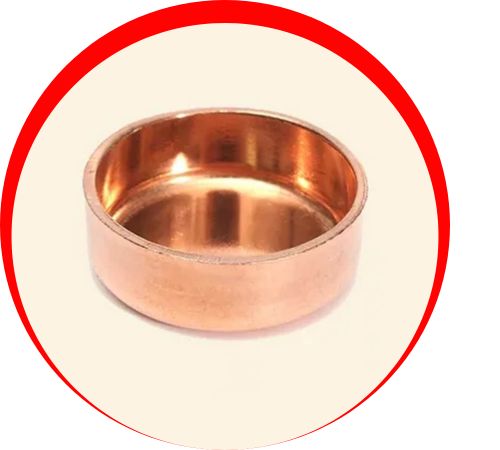

Fajar Metals, a top-notch manufacturer and supplier located in Jakarta, Indonesia, specializes in high-quality Copper Nickel 70/30 Fittings that cater to the rigorous demands of marine and industrial sectors. Crafted from a robust 70% copper and 30% nickel alloy, these fittings boast impressive resistance to seawater corrosion, erosion, and biofouling. Fajar Metals offers a wide array of fittings, including elbows, tees, reducers, couplings, and crosses—engineered for durability, reliability, and long-lasting performance. Adhering to international standards like ASTM B466/B467 and ASME guidelines, these fittings are a trusted choice for high-performance systems in offshore, shipbuilding, and desalination applications.
Copper Nickel 70/30 Fittings are composed of an alloy featuring 70% Copper (Cu) and 30% Nickel (Ni), with minor additions of Iron (Fe) and Manganese (Mn) to boost mechanical strength and corrosion resistance. These fittings are celebrated for their outstanding resistance to saltwater, brine, and biofouling, along with commendable thermal conductivity. They generally exhibit a tensile strength ranging from 350 to 450 MPa, a yield strength of 150 to 200 MPa, and possess high ductility and elongation. Their mechanical stability and resistance to stress corrosion make them perfect for high-pressure and high-velocity fluid applications.
| Specifications | : | ASTM B122 ASME SB122 |
| Size | : | 1/16”OD to 2”OD, 2mm OD to 50mm OD |
| Ends | : | Threaded, Welding, JIC |
| Pressure Rating | : | 3000 & 6000 |
| Threads | : | NPT , BSPT, BSPP |
| Grade | Cu | Mn | Pb | Ni | Fe | Zn |
| Cu-Ni 70/30 | 65.0 min | 1 max | .05 max | 29-33 | 0.4-1.0 | 1 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Copper Nickel 70-30 | 0.323 lb/in3 at 68 F | 2260 F | 50000 psi | 20000 psi | 30 % |
At Fajar Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Copper Nickel 70/30 Pipe Fittings in Jakarta, Indonesia, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Indonesia, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Copper nickel 70/30 fittings are widely used in the marine and offshore industries due to their excellent resistance to seawater corrosion and bio-odorants Important for applications such as seawater coolers, condenser tubes and heat exchangers. These materials are also used in shipbuilding for pipelines, valves and flanges, as well as in desalination plants and power generation facilities Their durability and stress corrosion crack resistance make them suitable for high stress conditions with reliability and durability performance is important
