Fajar Nickel Alloys is a leading manufacturer and supplier of high quality steel in Jakarta, Indonesia. We specialize in a wide range of materials, offering unique materials such as Alloys C263 foil, which is known for its high temperature and excellent corrosion resistance. Our alloy C263 foil is widely used in industries such as aerospace, chemical processing and power generation. With a commitment to quality and customer satisfaction, we offer reliable, robust and cost-effective solutions to meet your specific compounding needs.

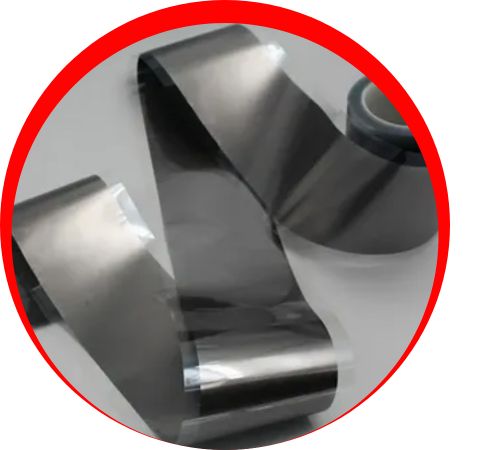

Alloys C263 foil is a nickel-based superalloy composed mainly of nickel (Ni), chromium (Cr), molybdenum (Mo), and tungsten (W), with minor amounts of iron (Fe), cobalt (Co), and other elements although Provides resistance to oxidation, corrosion and high temperature creep, making it ideal for harsh environments . Technical properties include high tensile strength, good fatigue strength, and dynamic range. The advantages of alloy C263 foil include excellent thermal stability, excellent scaling resistance and weldability, making it suitable for aerospace, chemical and power applications.
| Standard Specification : | AMS 5872 |
| Dimensions : | AMS |
| Sheets Thickness : | Range from .008″ to .0125″ |
| Plates Thickness : | Ranges from .0125″ to 5.00″ |
| Sheets/Plates Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets/Plates Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Value Added Service : | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Grade | Ni | Co | Cr | Mo | Ti | Fe | Mn | Al | Si | Cu | C | B | S |
| Alloys C263 | 49 | 19-21 | 19-21 | 5.60-6.10 | 1.90-2.40 | 0.70 | 0.60 | 0.60 | 0.40 | 0.20 | 0.040 – 0.080 | 0.0050 | 0.0070 |
| Material | Temp °C | Yield Strength (Mpa) | Tensile Strength (Mpa) | Elongation % | Hardness HRC |
|---|---|---|---|---|---|
| Alloys C263 Solution Treated (AMS 5872 / BS HR206) | RT | – | – | – | 22.5 max |
| Alloys C263 Heat Treated (AMS 5872 / BS HR206 | RT | 580 (typical) | 973 (typical) | 39 – | |
| Alloys C263 Heat Treated (AMS 5872 / BS HR206 | 780 | 403 (min) | 541 (min) | 9 | – |
At Fajar Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Alloys C263 Foil in Jakarta, Indonesia, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Indonesia, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Alloys C263 foil is widely used in applications that require high-performance materials that can withstand extreme conditions. High temperature, excellent oxidation and corrosion resistance makes it ideal for air and aerospace applications including turbine blades and exhaust systems It is also used in the chemical industry for heat exchangers, furnace components and reactor cores. In addition, due to its excellent creep resistance and durability in high-pressure environments, Alloys C263 foil is used in gas turbines and combustion chambers and co-power generation equipment.
